CF Vacuum Reducing Flange stainless steel 304

Share to:

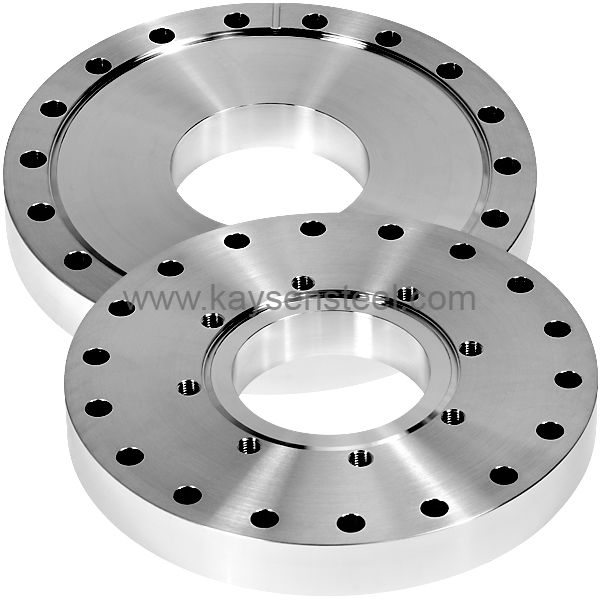

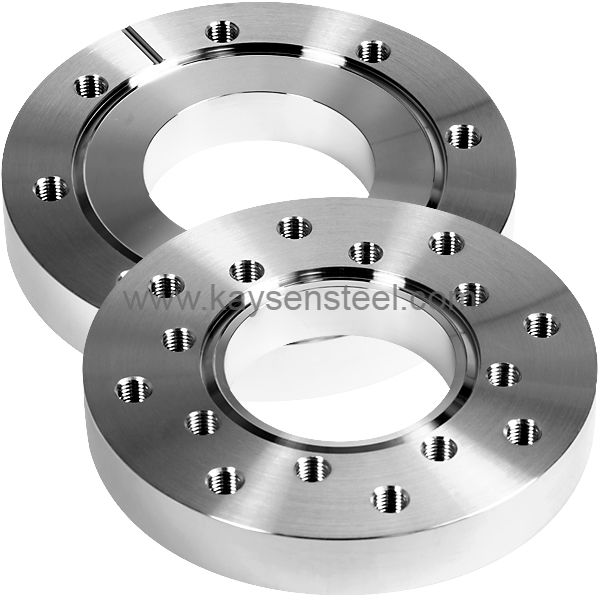

CF Vacuum Reducing Flange stainless steel 304

Vacuum reducing flange,Conflat reducing flange,
in vacuum pipeline systems, when pipes of different diameters need to be connected or when fittings cannot be directly matched with standard flanges, CF reducing flanges can effectively solve this problem.

Availability:

Quantity:



Inquire Add to Basket

Model:
CF Vacuum Flange
Brand:
KAYSEN

Product Description

Description of ISO vacuum flanges

● Vacuum flanges are key mechanical components in high-vacuum systems, widely used in physics, chemistry, and engineering research.

● They pass helium leakage tests before shipping and include plastic protective caps to prevent scratching during transport.

● CF vacuum flanges are available in various sizes and shapes for different system setups, with threaded or unthreaded designs and standard or custom flange faces.

CF Vacuum conflat Reducing flange zero length Specification

Product Name	CF Vacuum conflat Reducing flange zero length
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150,CF200,CF250,CF275.
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF Vacuum flange types	CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange

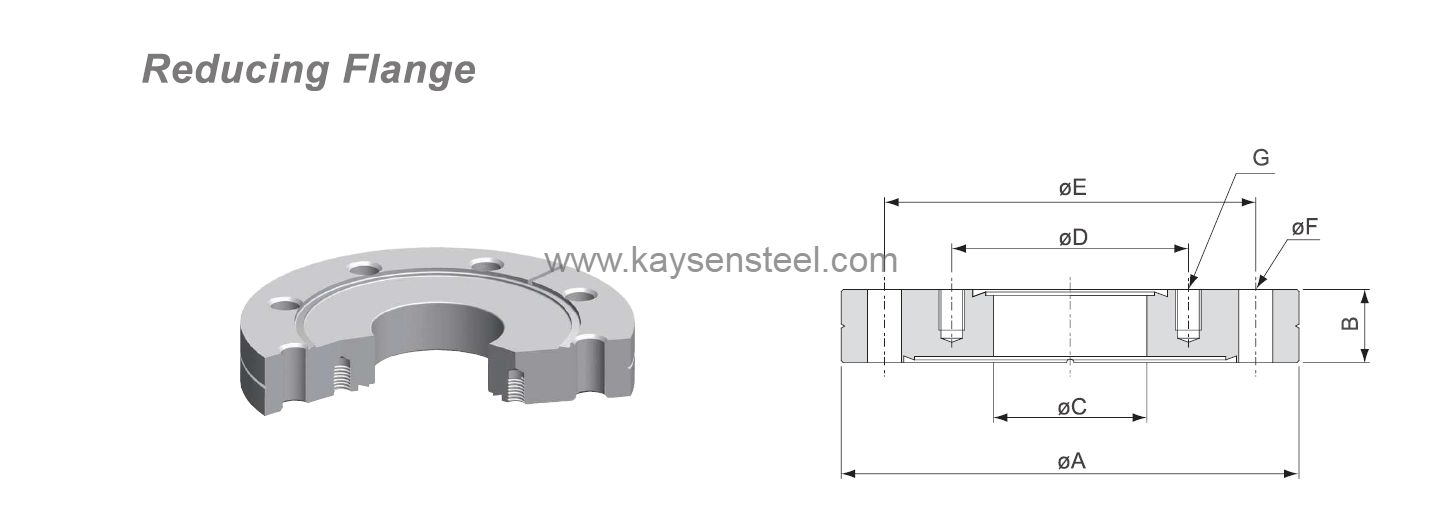

CF Vacuum conflat Reducing flange zero length parameters

CF Vacuum conflat Reducing flange zero length

Model No.	Material	A	B	C	D	E	*FNO**	*GNO**
CF35RF16	S.S.304/316	69.5	12.7	15.8	26.9	58.7	6.7*6	M4*6
CF63RF16	S.S.304/316	113.6	18	15.8	26.9	92.1	8.4*8	M4*6
CF63RF35	S.S.304/316	113.6	18	38.1	58.7	92.1	8.4*8	M6*6
CF100RF35	S.S.304/316	151.6	20	38.1	58.7	130.3	8.4*16	M6*6
CF100RF63	S.S.304/316	151.6	20	63.5	92.1	130.3	8.4*16	M8*8
CF150RF35	S.S.304/316	202.5	22	38.1	58.7	181	8.4*20	M6*6
CF150RF63	S.S.304/316	202.5	22	63.5	92.1	181	8.4*20	M8*8
CF150RF100	S.S.304/316	202.5	22	101.6	130.3	181	8.4*20	M8*16
CF200RF35	S.S.304/316	253.2	24.7	38.1	58.7	231.8	8.4*24	M6*6
CF200RF63	S.S.304/316	253.2	24.7	63.5	92.1	231.8	8.4*24	M8*8
CF200RF100	S.S.304/316	253.2	24.7	101.6	130.3	231.8	8.4*24	M8*16
CF200RF150	S.S.304/316	253.2	24.7	152.4	181	231.8	8.4*24	M8*20
CF275RF35	S.S.304/316	336.5	28.5	38.1	58.7	306.5	10.3*30	M6*6
CF275RF63	S.S.304/316	336.5	28.5	63.5	92.1	306.5	10.3*30	M8*8
CF275RF100	S.S.304/316	336.5	28.5	101.6	130.3	306.5	10.3*30	M8*16
CF275RF150	S.S.304/316	336.5	28.5	152.4	181	306.5	10.3*30	M8*20
CF275RF200	S.S.304/316	336.5	28.5	203.2	231.8	306.5	10.3*30	M8*24

Special Sizes Available Upon Request
