CF Vacuum Component Vacuum Flange Fittings Half Nipple Nonrotatable SS304/SS316L Wholesale

Share to:

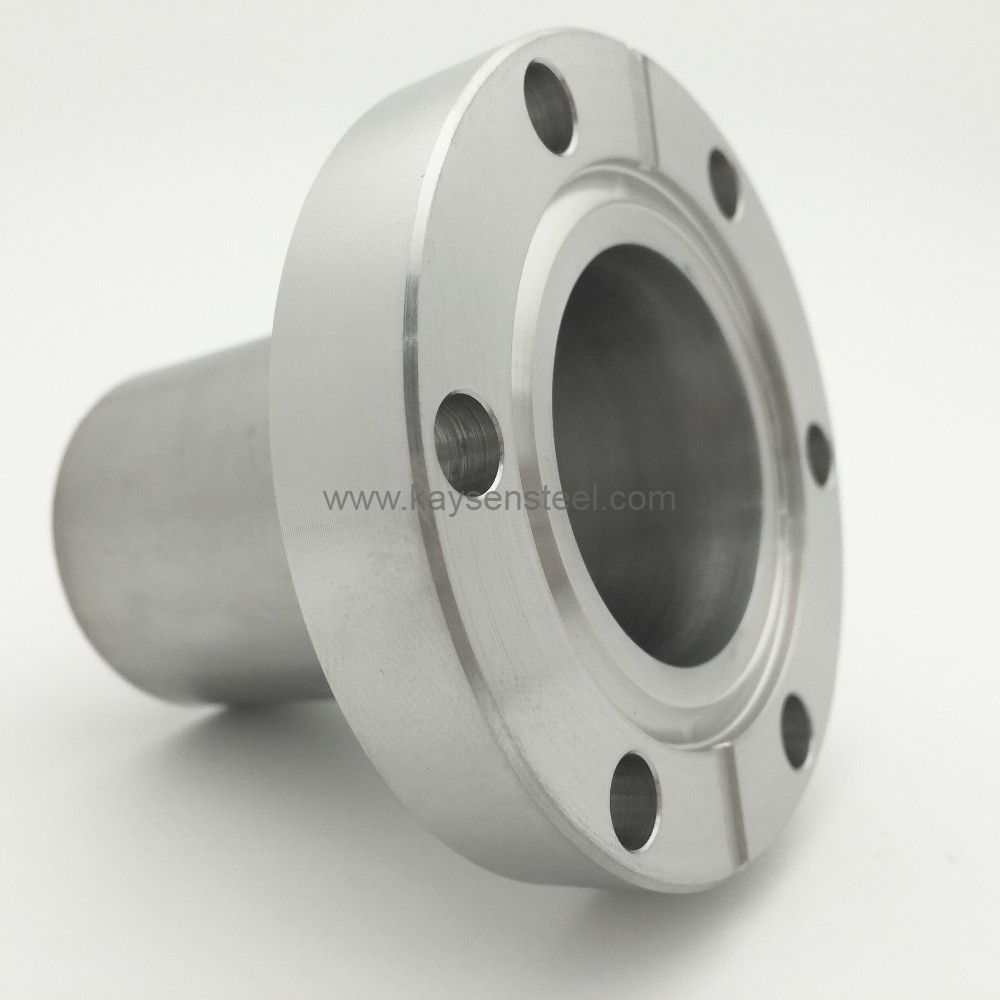

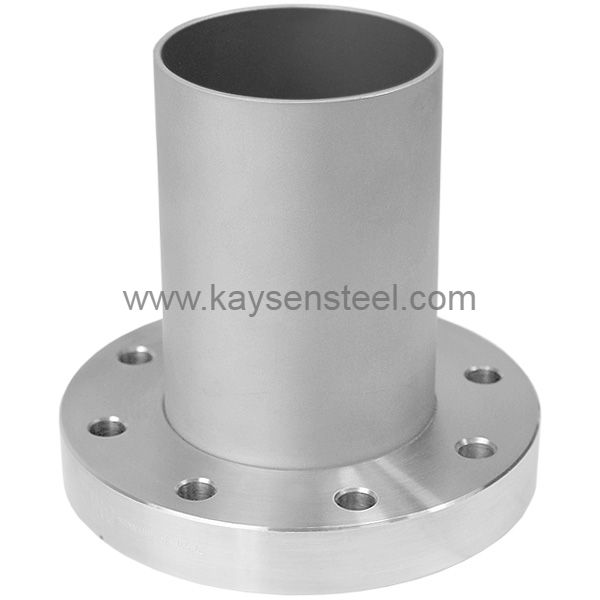

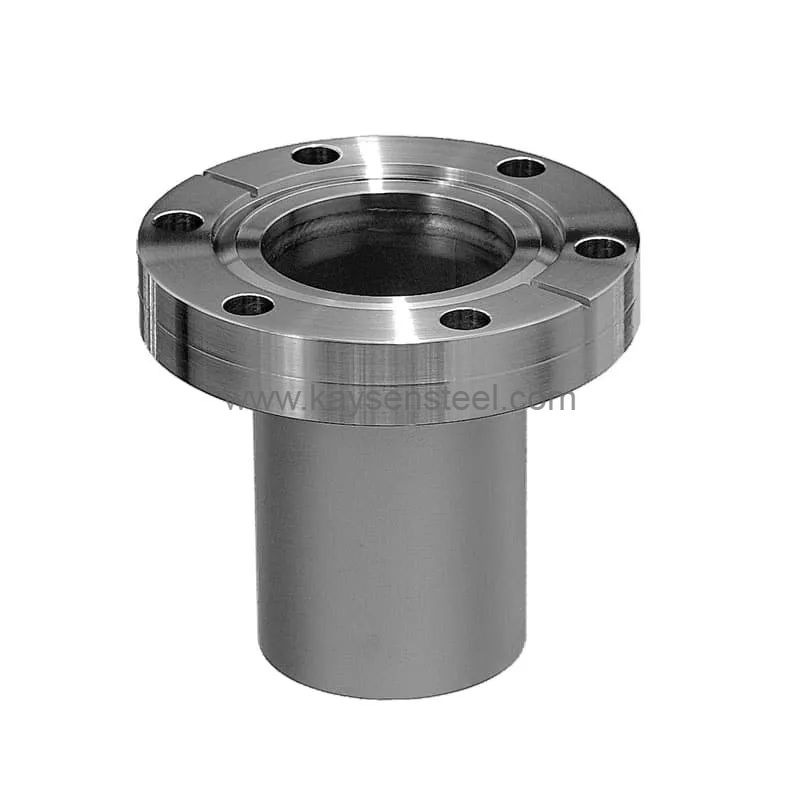

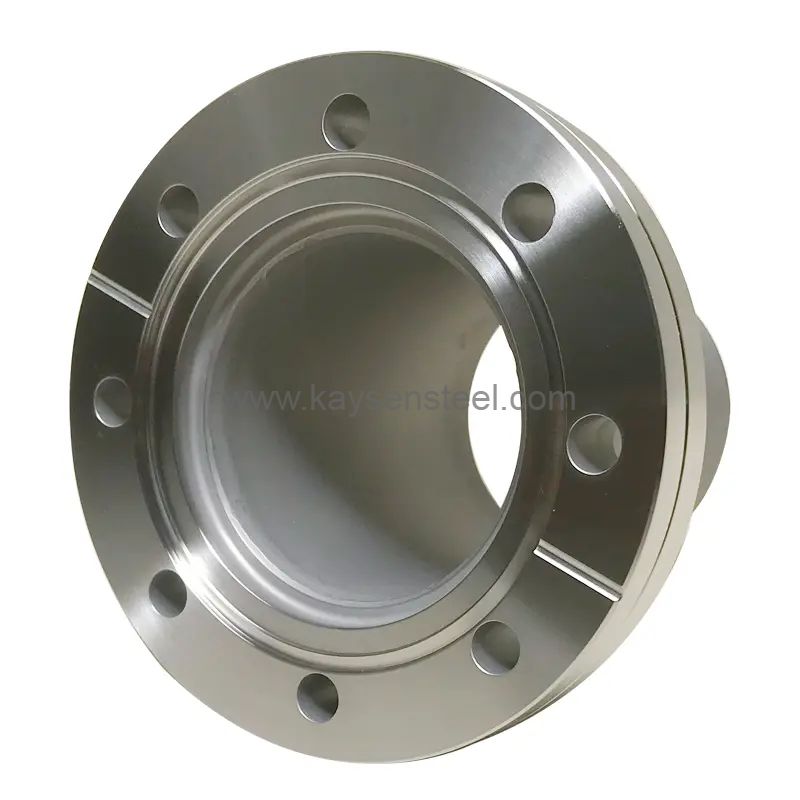

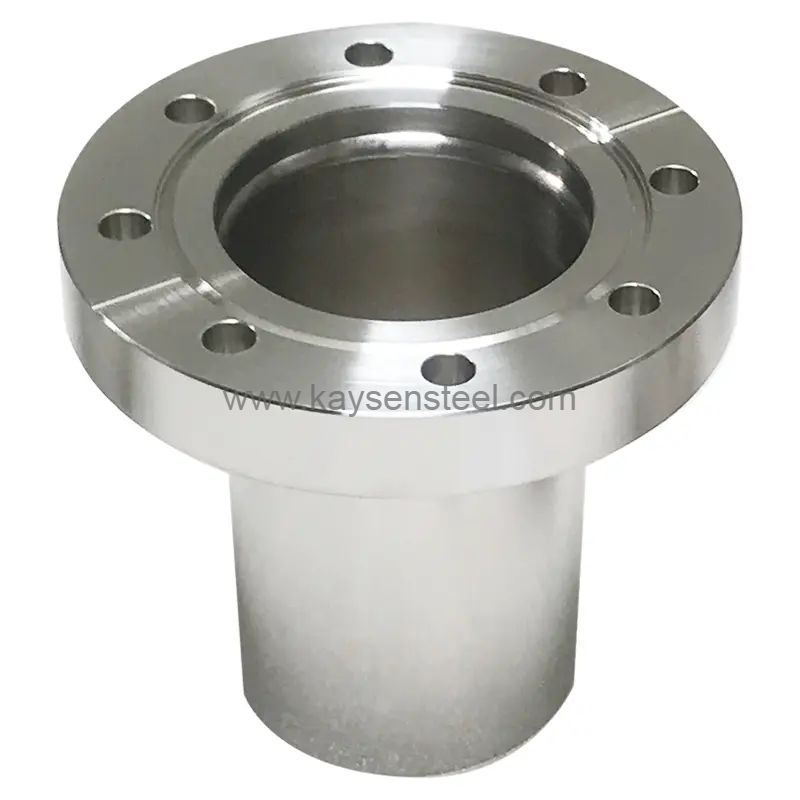

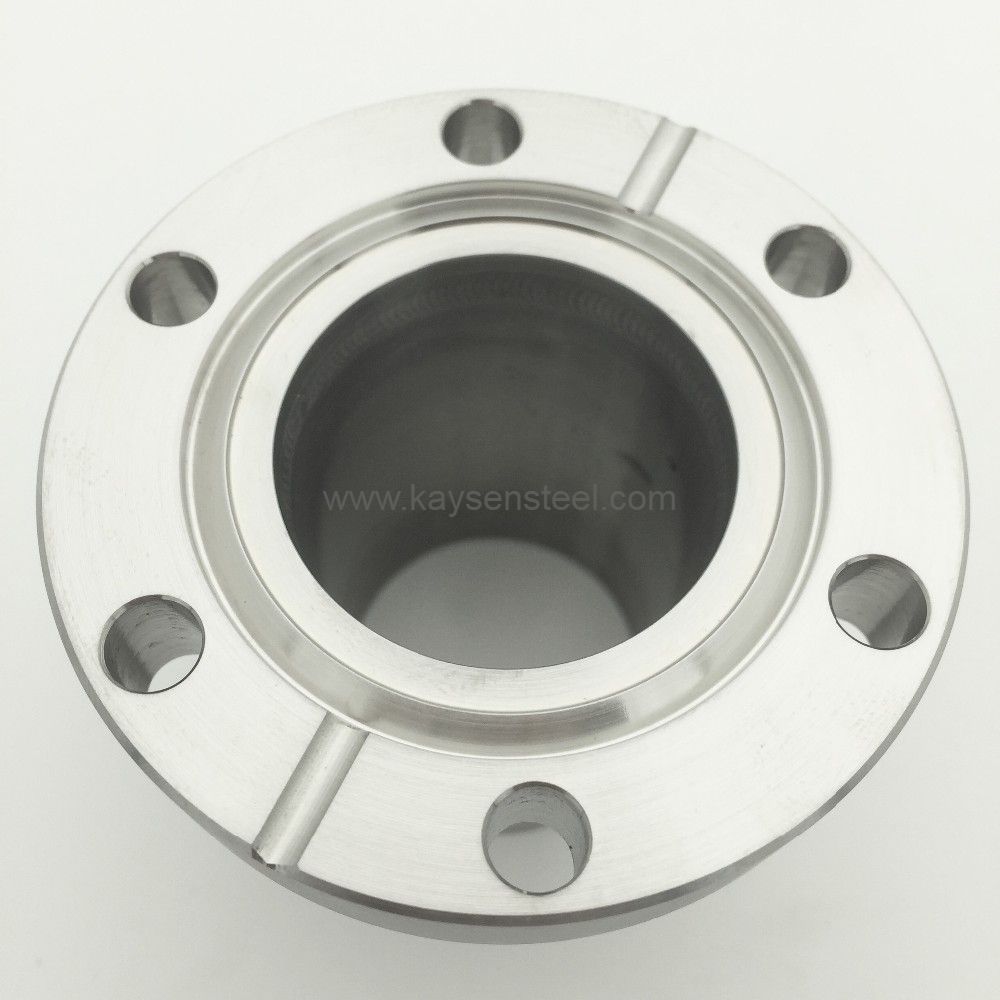

CF Vacuum Component Vacuum Flange Fittings Half Nipple Nonrotatable SS304/SS316L Wholesale

Vacuum half nipple,CF flange half nipple is a flange connection used in ultra-high vacuum environment.half nipples helium leak tested is 1 x10-9 cc/sec for quality assurance.

Availability:

Quantity:



Inquire Add to Basket

Model:
CF vacuum flange
Brand:
KAYSEN

Product Description

Description of CF NIPPLES:

● Vacuum half nipples are primarily used in ultra-high vacuum systems. Prior to shipment, they undergo a series of tests—including vacuum sealing and dimensional accuracy checks—to ensure joint quality and performance.

● They are typically packaged in anti-static materials for shipment to prevent static damage.

● For assembly and use, CF vacuum half nipples usually employ metal sealing to maintain system vacuum and tightness.

CF HALF NIPPLE Nonrotatable Specification

Product Name	CF HALF NIPPLE Nonrotatable
Brand	RUIJIA
Size	CF16-CF200
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard flange
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Surface	Sand Blasting or Polished Surface

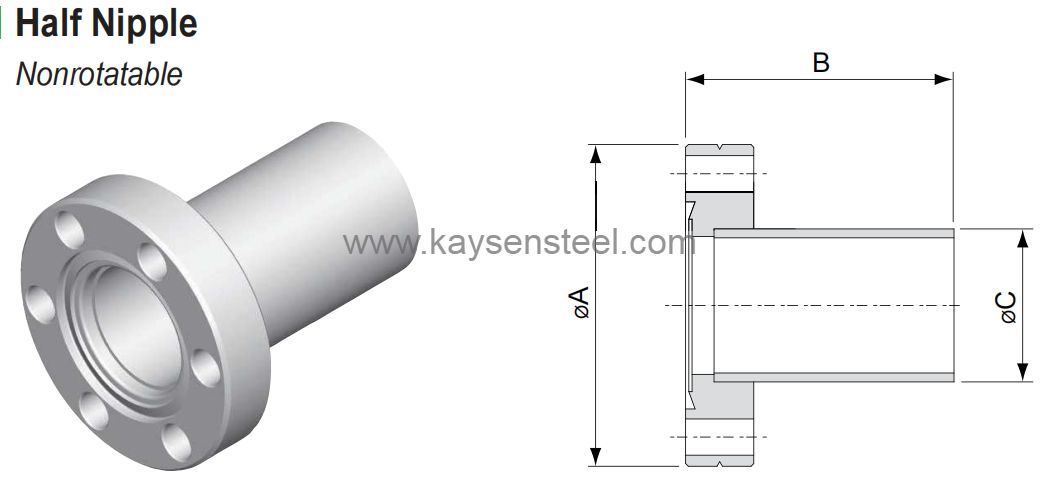

CF HALF NIPPLE Nonrotatable Parameters

CF HALF NIPPLE Nonrotatable

Unit:mm

Model No.	Material	A	B	C
CF16HN	S.S.304/316	33.8	38	19.05
CF35HN	S.S.304/316	69.5	63	38.1
CF63HN	S.S.304/316	113.6	105	63.5
CF100HN	S.S.304/316	151.6	135	101.6
CF150HN	S.S.304/316	202.5	167	152.4
CF200HN	S.S.304/316	253.2	167	203.2

CF HALF NIPPLE Nonrotatable can be costomized.

CF HALF NIPPLE Nonrotatable Product Center

vacuum components factory

CF HALF NIPPLE Nonrotatable Packing Center

vacuum components warehouse
