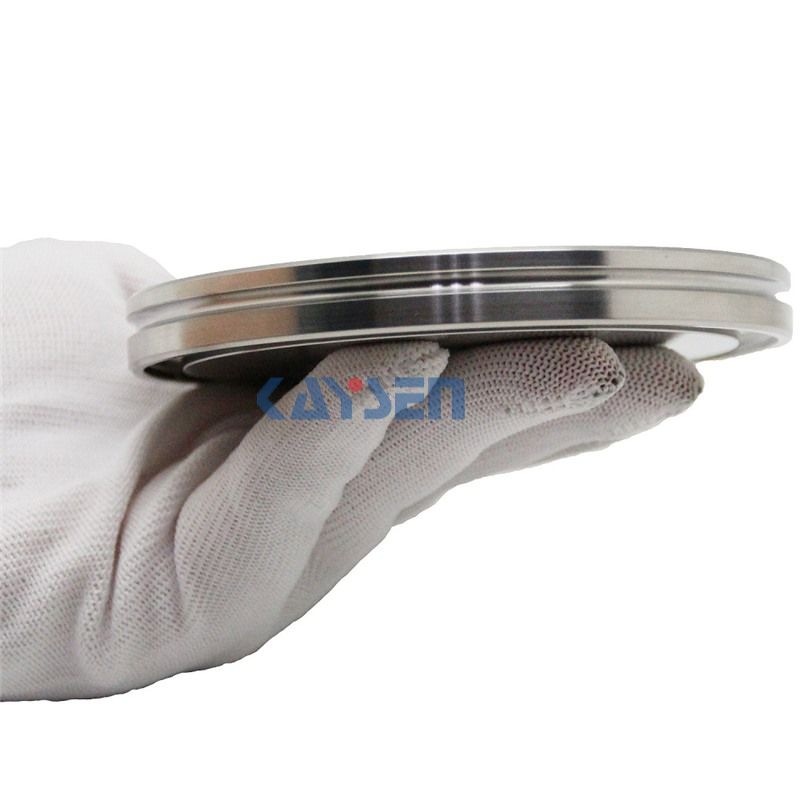

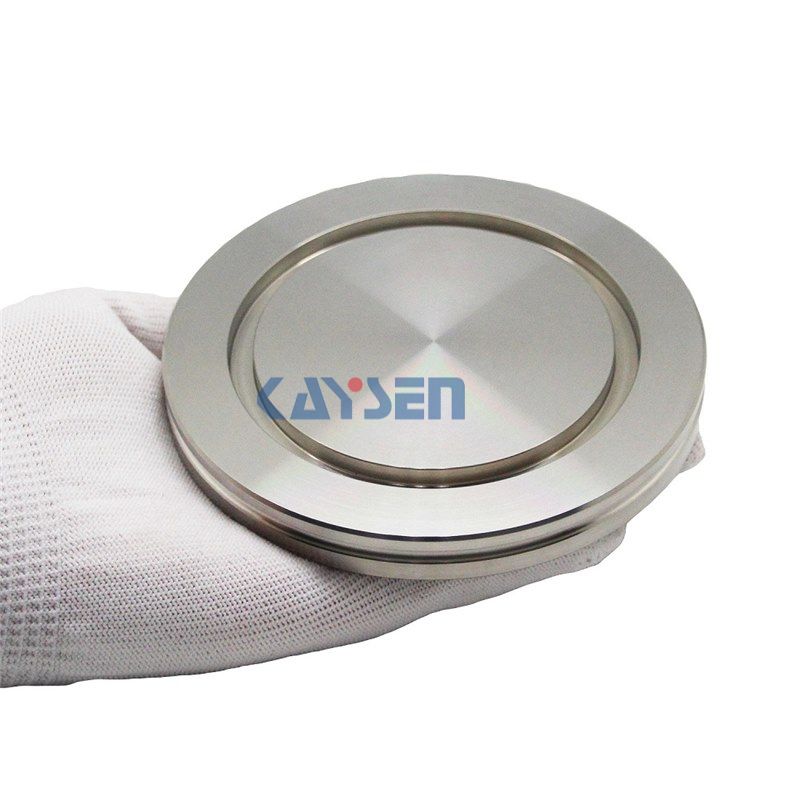

ISO vacuum bored flange
KAYSEN
Description of ISO vacuum flanges
● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation

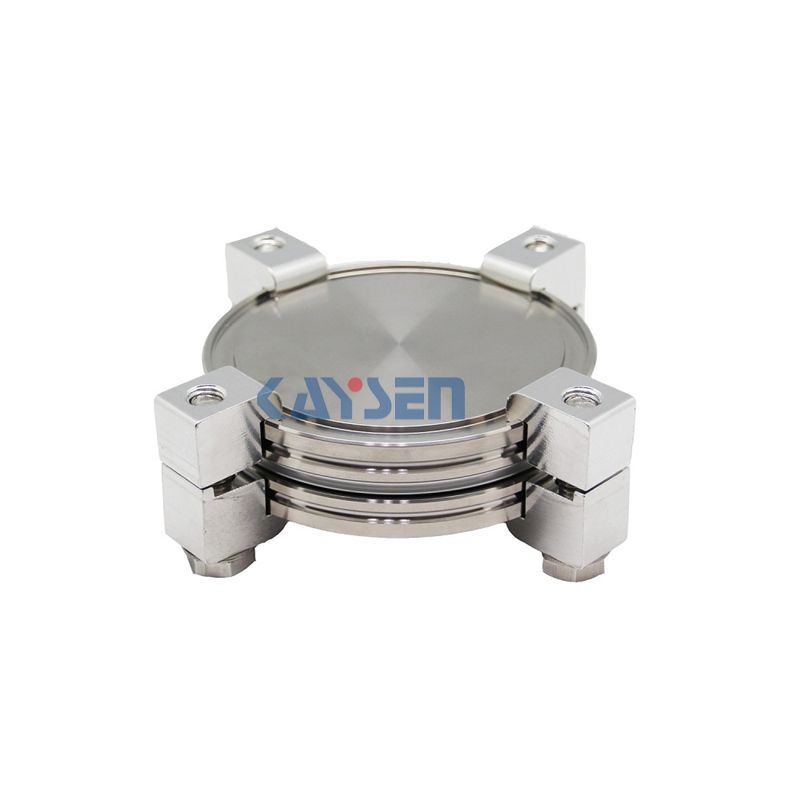

●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
ISO vacuum blank flange Specification
Product Name | ISO vacuum blank flange ISO63-ISO500 |
Brand | RUIJIA |
Size | ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500 |
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
Seal material | Viton,Silocone,Buna-N seal |
Standard | KF,ISO,CF Standard |
Temperature | -200~800℃ |
Working Pressure | Vacuum~atmosphere pressure |
Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
Packing | sealed plastic bag with a protective plastic cap. |
ISO Vacuum flange types | ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short) |

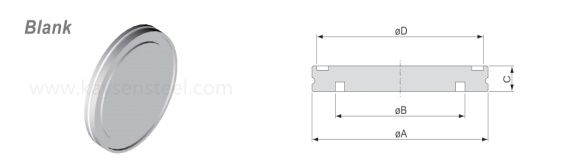

ISO vacuum blank flange Product parameters
ISO Vacuum Blank Flange
Unit:mm | |||||
Model No. | Material | A | B | C | D |
ISO63B | SS304 | 95 | 70 | 12 | 90 |
ISO80B | SS304 | 110 | 83 | 12 | 105 |
ISO100B | SS304 | 130 | 102 | 12 | 125 |
ISO160B | SS304 | 180 | 153 | 12 | 175 |
ISO200B | SS304 | 240 | 213 | 12 | 235 |
ISO250B | SS304 | 290 | 261 | 12 | 285 |
ISO320B | SS304 | 370 | 318 | 17 | 365 |
ISO400B | SS304 | 450 | 400 | 17 | 445 |
ISO500B | SS304 | 550 | 501 | 17 | 545 |
**SS316, Aluminum is upon request | |||||

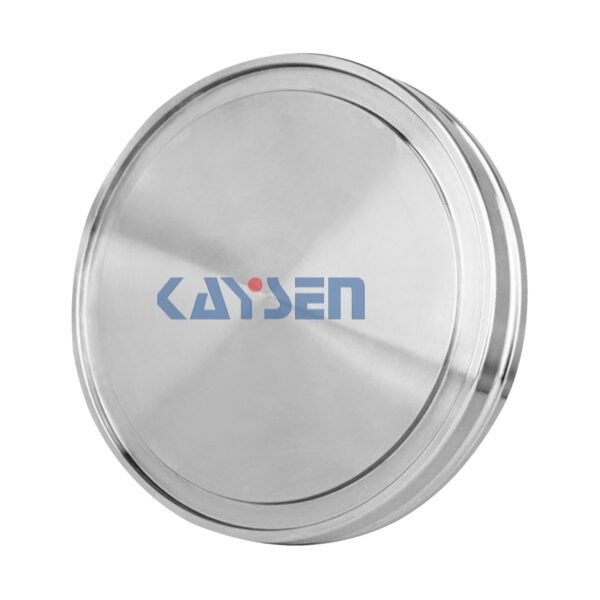

ISO Vacuum Bored Flange
Unit:mm | ||||||
Model No. | Material | A | B | C | D | E |
ISO63B63 | SS304 | 95 | 70 | 12 | 90 | 63.7 |
ISO80B76 | SS304 | 110 | 83 | 12 | 105 | 76.8 |
ISO100B102 | SS304 | 130 | 102 | 12 | 125 | 102.2 |
ISO160B153 | SS304 | 180 | 153 | 12 | 175 | 152.9 |
ISO200B204 | SS304 | 240 | 213 | 12 | 235 | 203.7 |
ISO250B255 | SS304 | 290 | 261 | 12 | 285 | 254.5 |
ISO320B305 | SS304 | 370 | 318 | 17 | 365 | 305.3 |
ISO400B407 | SS304 | 450 | 400 | 17 | 445 | 406.9 |
ISO500B509 | SS304 | 550 | 501 | 17 | 545 | 508.8 |
**SS316, Aluminum is upon request | ||||||
