Vacuum ISO flange Rotatable Bolt Ring China ISO63-ISO500

Share to:

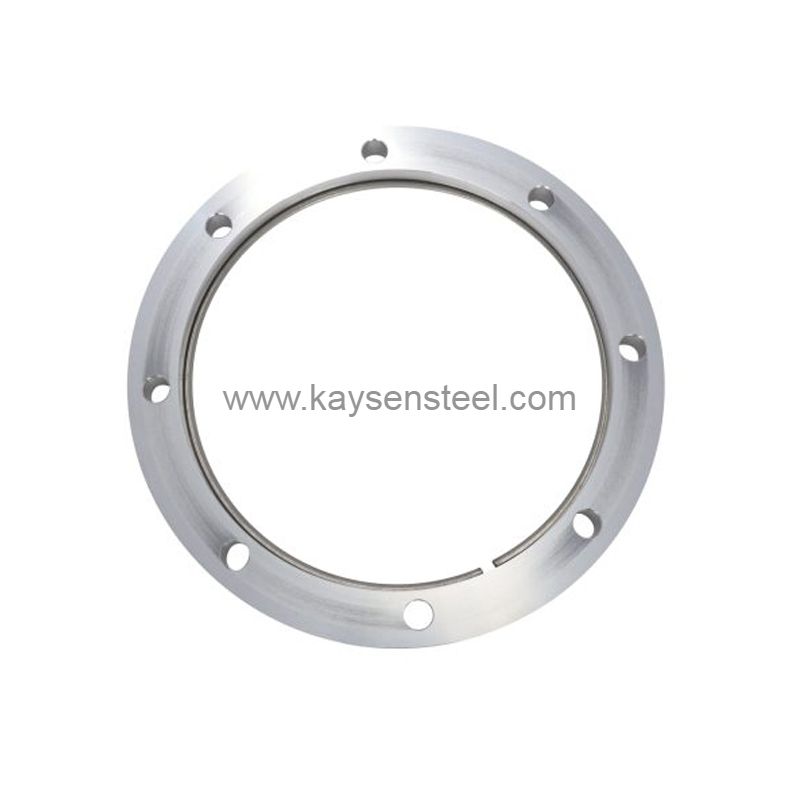

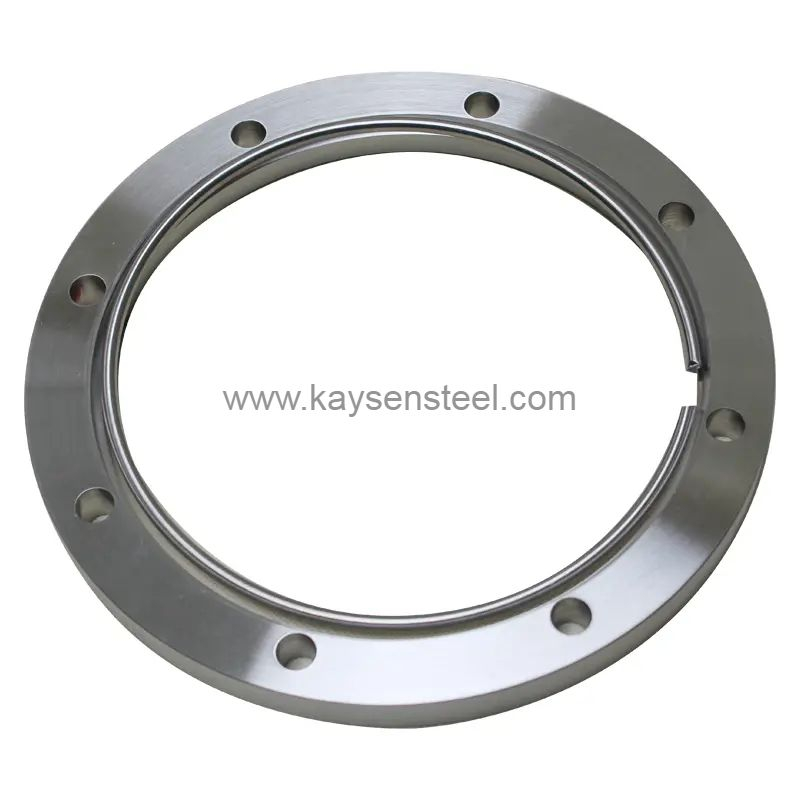

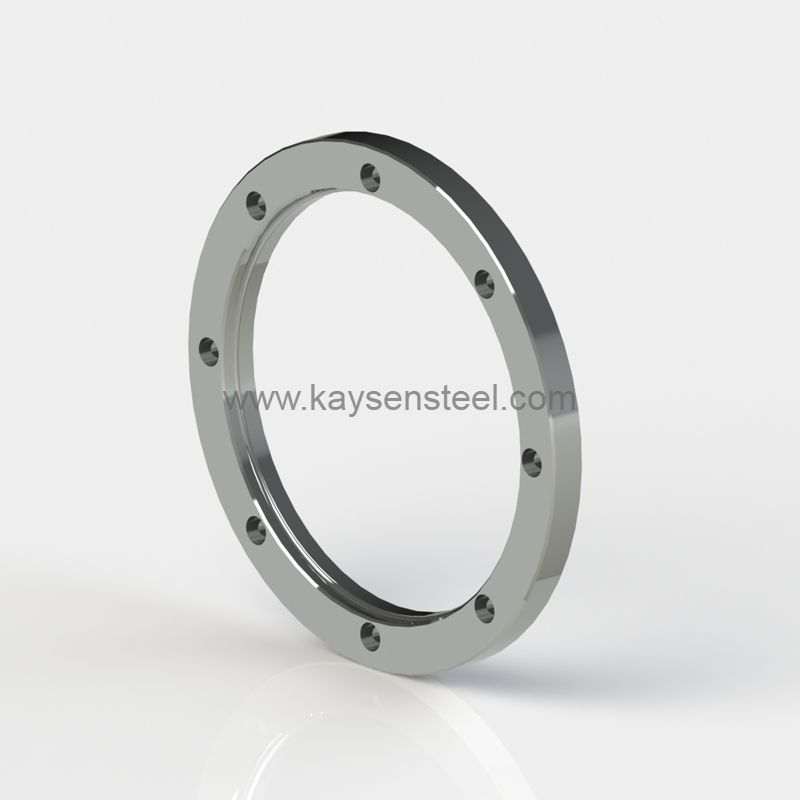

Vacuum ISO flange Rotatable Bolt Ring China ISO63-ISO500

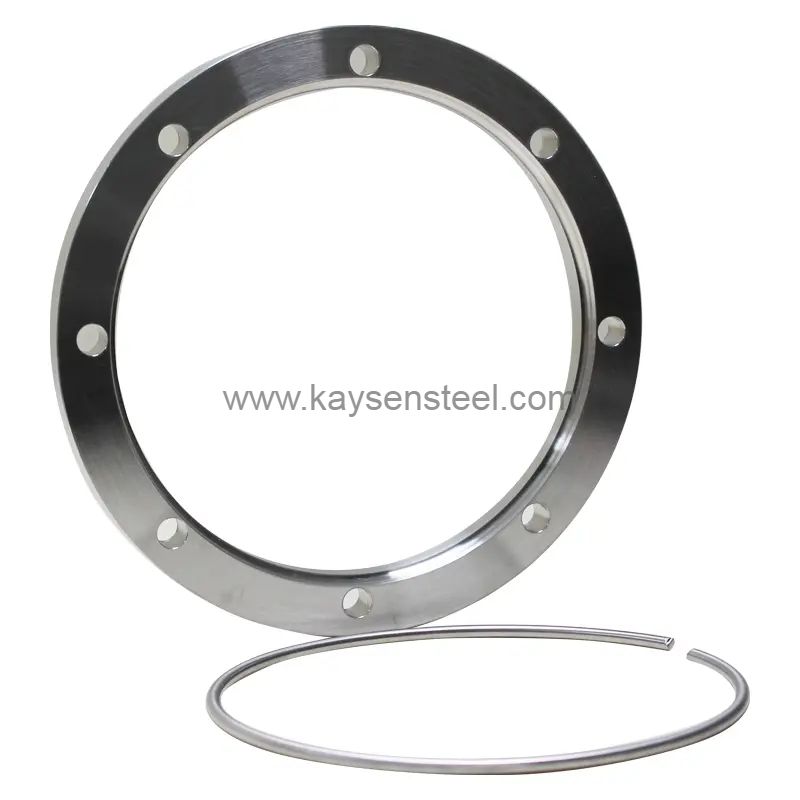

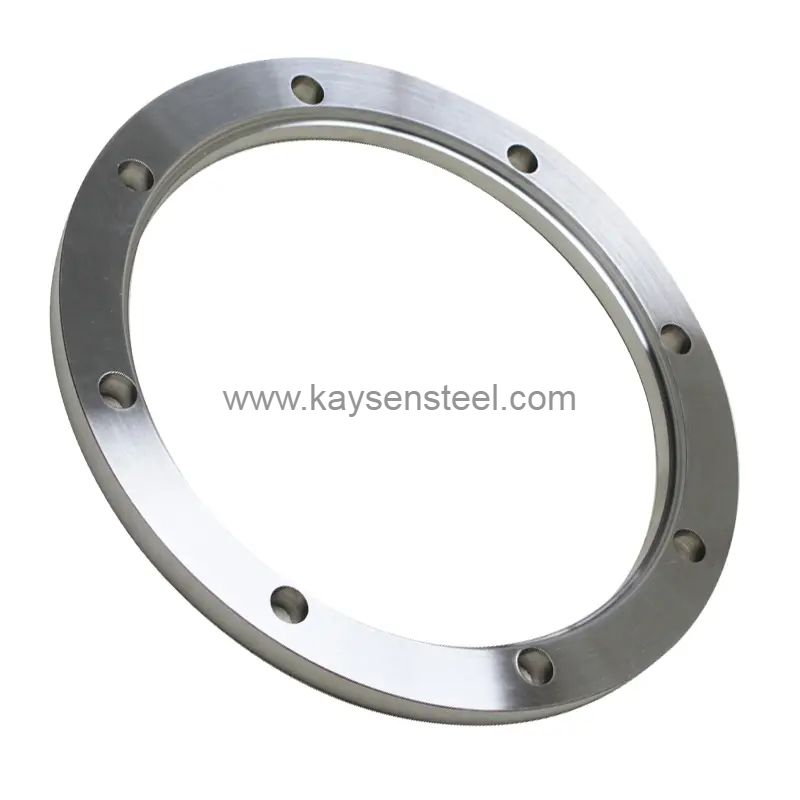

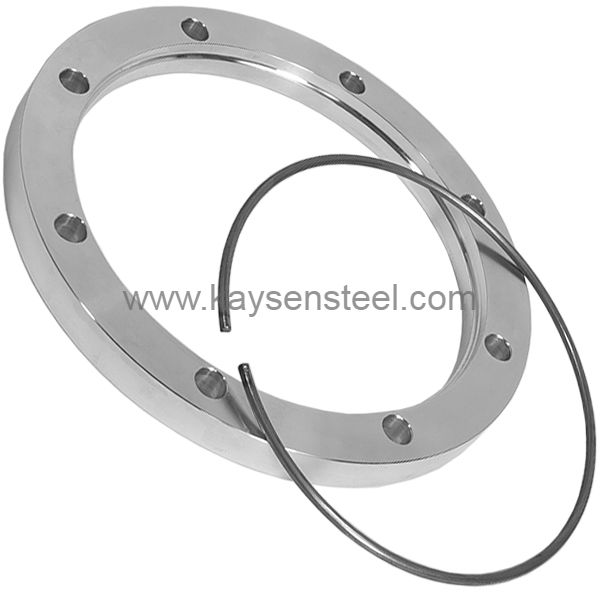

ISO-BF rotatable bolt rings have a bore for standard inch tube and piping diameters. ISO-MF stainless steel retaining rings are used to secure ISO-MF vacuum flange rotatable bolt rings.

Availability:

Quantity:



Inquire Add to Basket

Model:
ISO vacuum bored flange
Brand:
KAYSEN

Product Description

Description of ISO vacuum flanges

● Used in both low and high vacuum systems, these components provide a simple solution for applications needing easy, repeated assembly.

● They pass helium leakage tests before shipping and include plastic flange caps to prevent scratches during transport.

● ISO-KF components are assembled by placing a centering ring (with a Viton O-ring) between two flanges and securing them with a vacuum clamp.

ISO Rotatable Bolt Ring ISO63-ISO500 Specification

Product Name	ISO Rotatable Bolt Ring ISO63-ISO500
Brand	RUIJIA
Size	ISO63-ISO500
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard flange
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.

ISO Rotatable Bolt Ring ISO63-ISO500 parameters

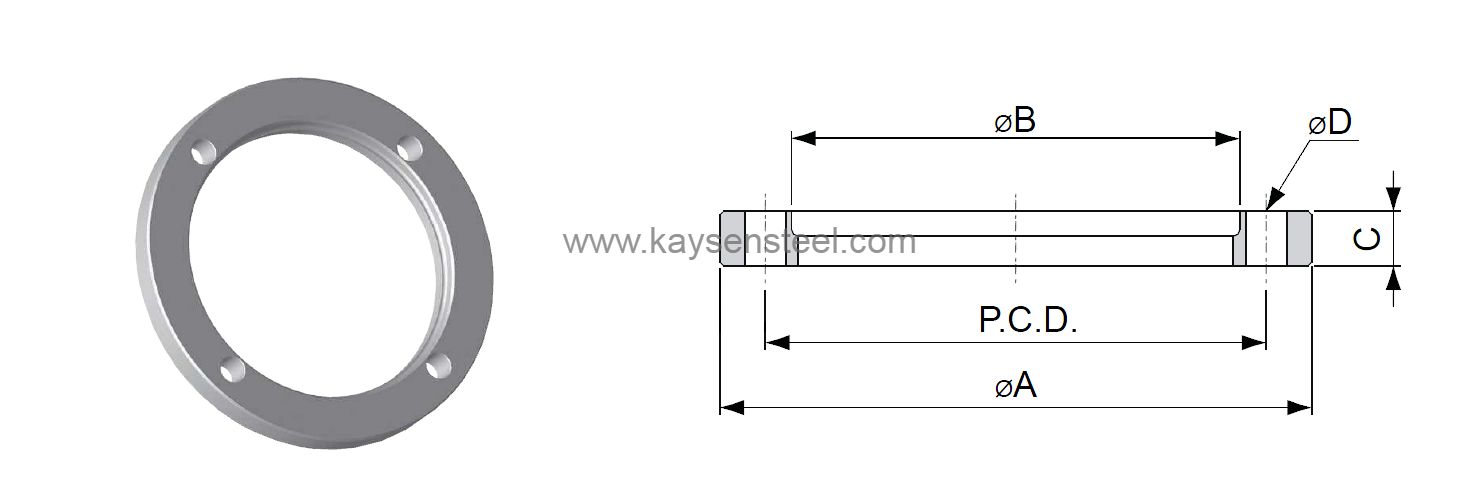

ISO Rotatable Bolt Ring ISO63-ISO500 Unit:mm

Model No.	Material	A	B	C	*DNo**	P.C.D.
ISO63RBR	SS304	130	98.5	12	9*4	110
ISO80RBR	SS304	145	113.5	12	9*8	125
ISO100RBR	SS304	165	133.5	12	9*8	145
ISO160RBR	SS304	225	185.7	16	11*8	200
ISO200RBR	SS304	285	245.7	16	11*12	260
ISO250RBR	SS304	335	295.7	16	11*12	310
ISO320RBR	SS304	425	375.8	20	14*12	395
ISO400RBR	SS304	510	458.8	20	14*16	480
ISO500RBR	SS304	610	558.8	20	14*16	580

ISO fittings connection

iso flanges assemble

ISO Rotatable Bolt Ring ISO63-ISO500 Product Center

vacuum components factory

ISO Rotatable Bolt Ring ISO63-ISO500 Packing Center

vacuum components warehouse
