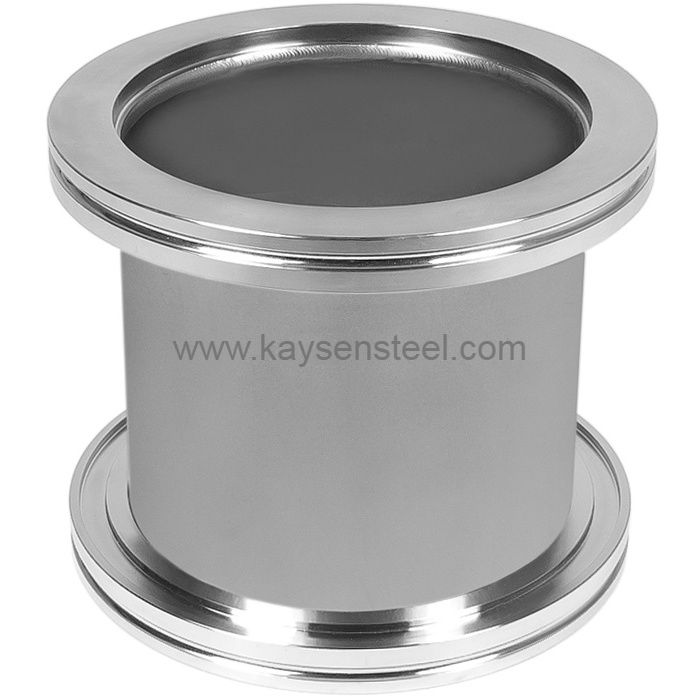

ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale

Share to:

ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale

ISO vacuum full nipples feature a flange on one end and raw tubing on the other. They work with quick-connect fittings to create vacuum-tight connections without welding.

Availability:

Quantity:



Inquire Add to Basket

Model:
ISO vacuum flange
Brand:
KAYSEN

Product Description

Description of ISO NIPPLES:

● ISO vacuum nipples are specialized components used in medical applications—especially respiratory therapy and neonatal care. Designed to fit catheter ends, they work with vacuum systems for efficient suction.

● Available in various sizes to match different catheters, they attach securely to vacuum systems. Featuring quick-release mechanisms, they are easy to handle and attach/detach.

ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Specification

Product Name	ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale
Brand	RUIJIA
Size	ISO63-ISO500
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard flange
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Surface	Sand Blasting or Polished Surface

ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings parameters

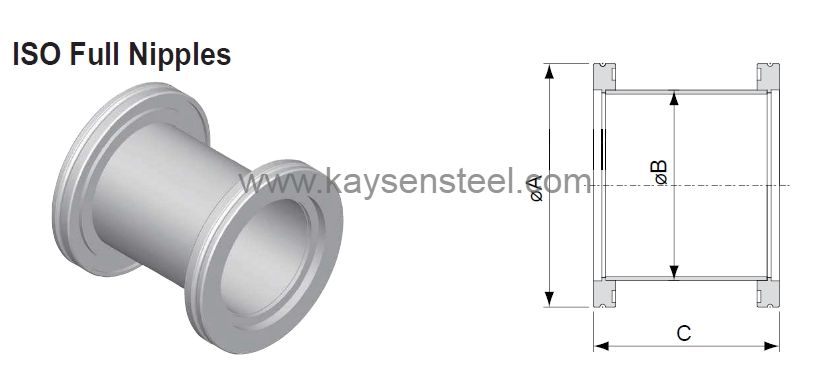

ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Unit:mm

Model No.	Material	A	B	C
ISO63N100	SS304	95	63.5	100
ISO80N100	SS304	110	76.2	100
ISO100N100	SS304	130	101.6	100
ISO160N100	SS304	180	152.4	100
ISO200N100	SS304	240	203.2	100
ISO250N100	SS304	290	254	100
ISO320N200	SS304	370	304.8	100
ISO400N200	SS304	450	406.8	100
ISO500N200	SS304	550	508	100

*Part number plus "K" for sand blasting surface

*Part number plus "L" for polished surface

ISO fittings connection

iso flanges assemble
