KF vacuum flange
KAYSEN
Description of KF NIPPLES:
● Used in high-tech sectors including semiconductor manufacturing, defense research, aerospace, biopharmaceuticals, LCD displays, photovoltaics, and solar energy.
● KF vacuum connectors are packaged with shockproof foam, plastic bags, or cartons before delivery to prevent damage during transport.

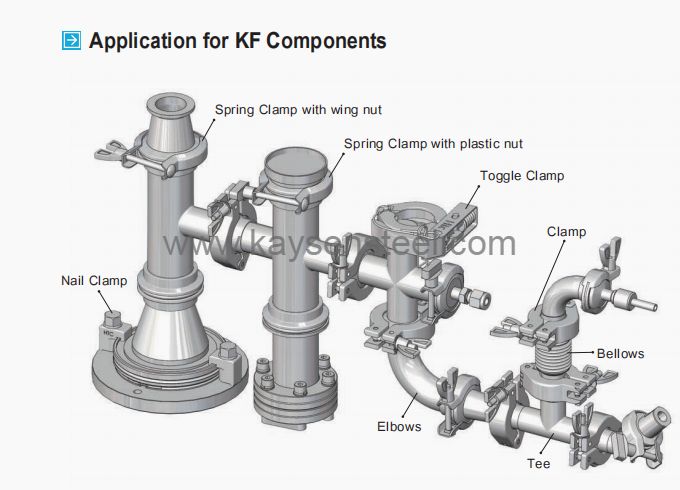

● For assembly and use, KF vacuum nipples are typically paired with vacuum clamp heads, center brackets, and vacuum blind plates, among other accessories.

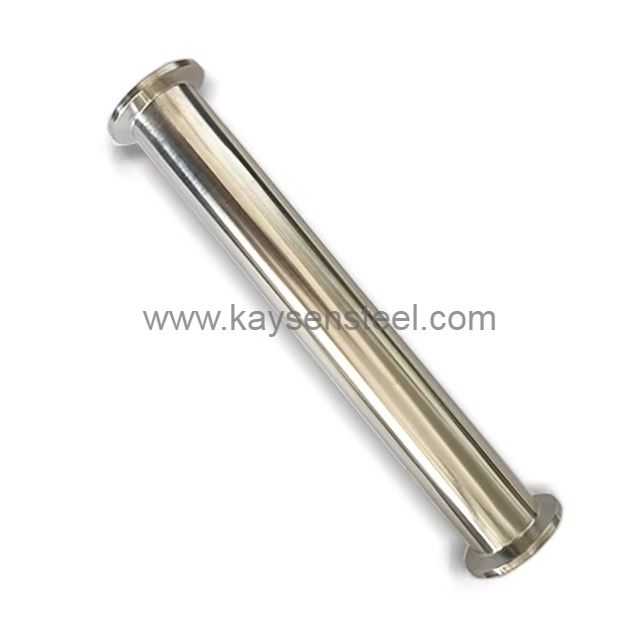

KF Full NIPPLE Specification
Product Name | KF Full NIPPLE |
Brand | RUIJIA |
Size | KF16-KF50 |
Material | SS304, SS316L |
Seal material | Viton,Silicone,Buna-N seal |
Standard | KF Standard |
Temperature | -200~800℃ |
Working Pressure | Vacuum~atmosphere pressure |
Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
Packing | sealed plastic bag with a protective plastic cap. |
Surface | Sand Blasting or Polished Surface |
KF Full NIPPLE Parameters

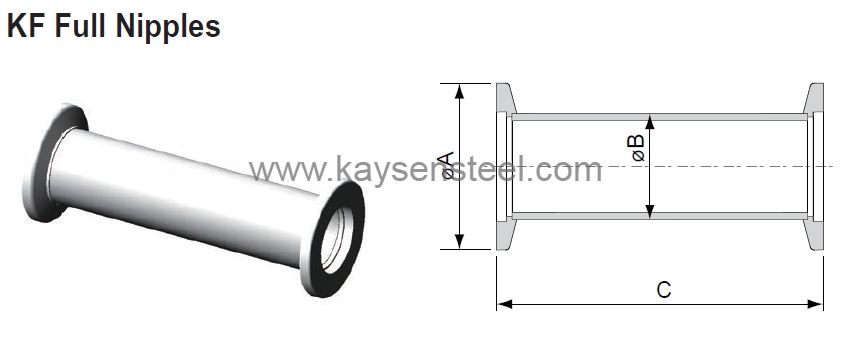

KF Full Nipples Unit:mm
Model No. | Material | A | B | C |
KF16N80 | S.S.304 | 30 | 19.05 | 80 |
KF25N100 | S.S.304 | 40 | 25.4 | 100 |
KF40N130 | S.S.304 | 55 | 38.1 | 130 |
KF50N140 | S.S.304 | 75 | 50.8 | 140 |
KF Full Nipples can be costomized.

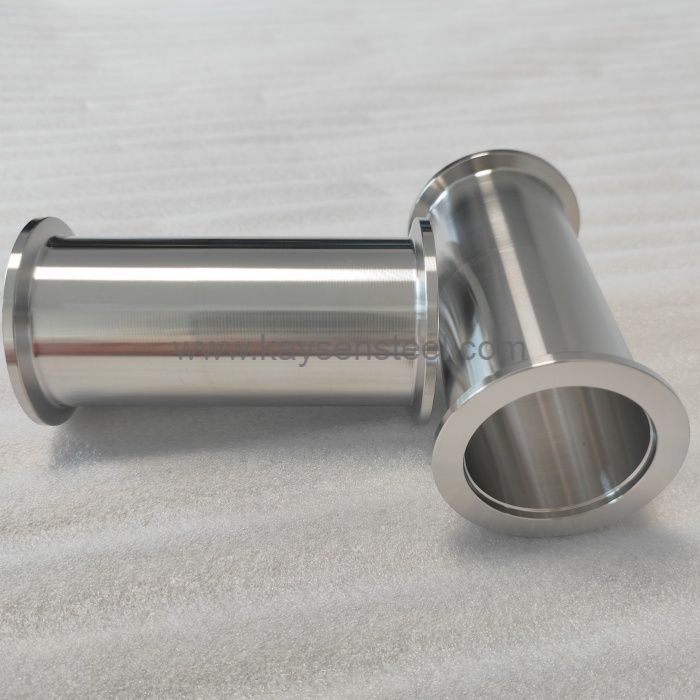

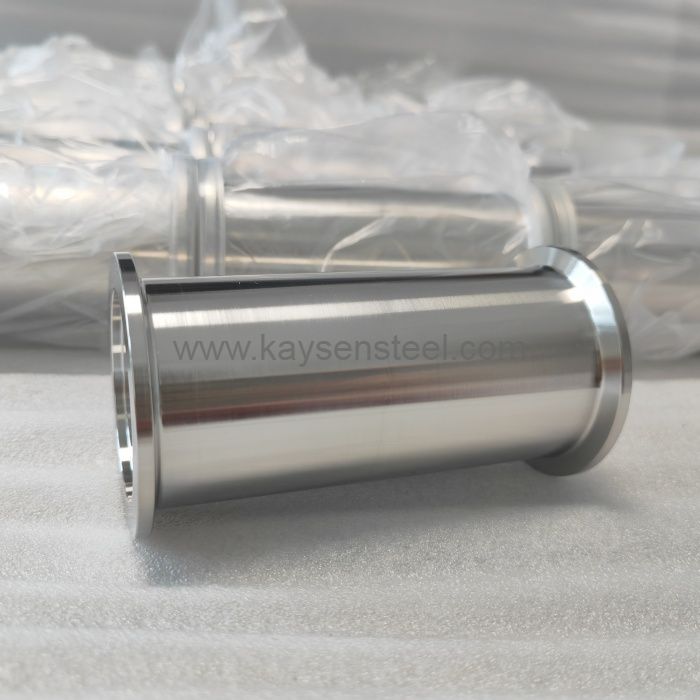

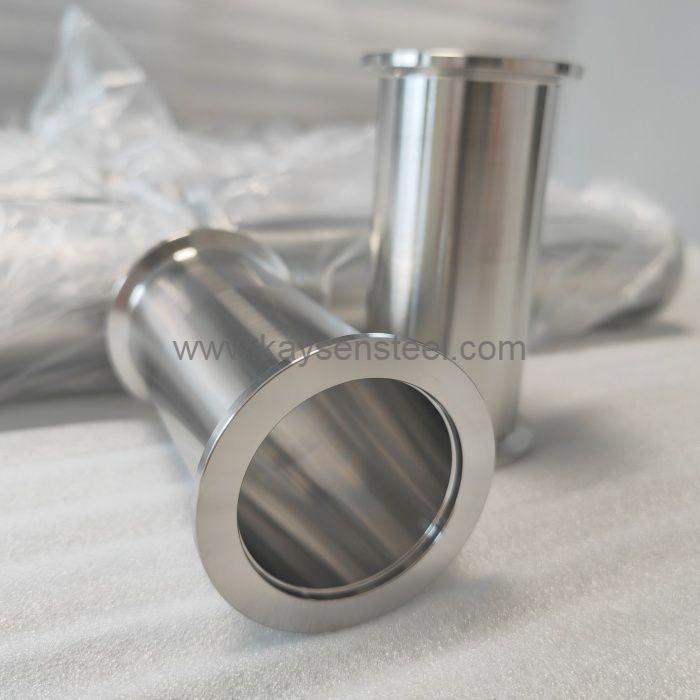

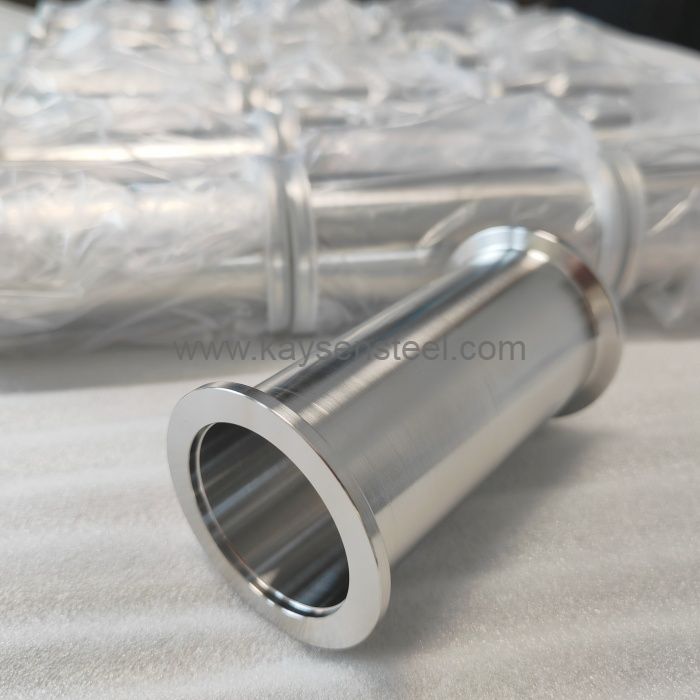

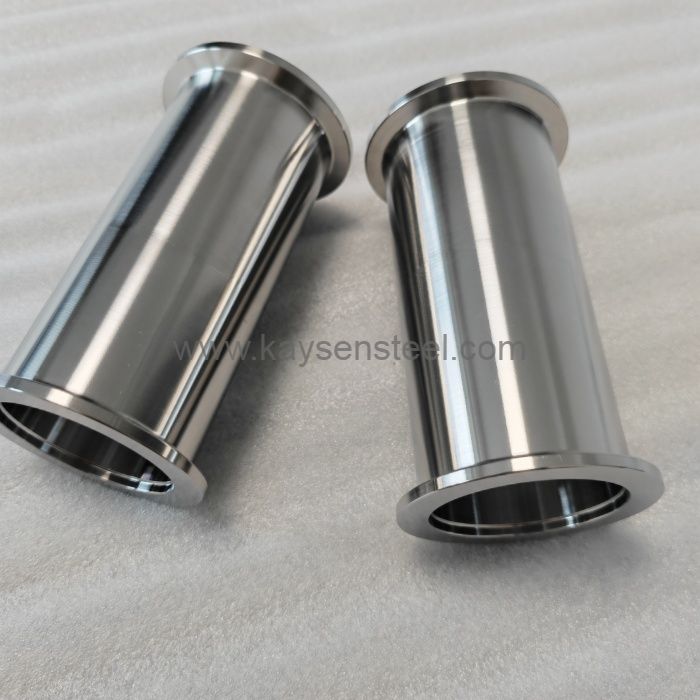

KF FUll Nipples Product Center

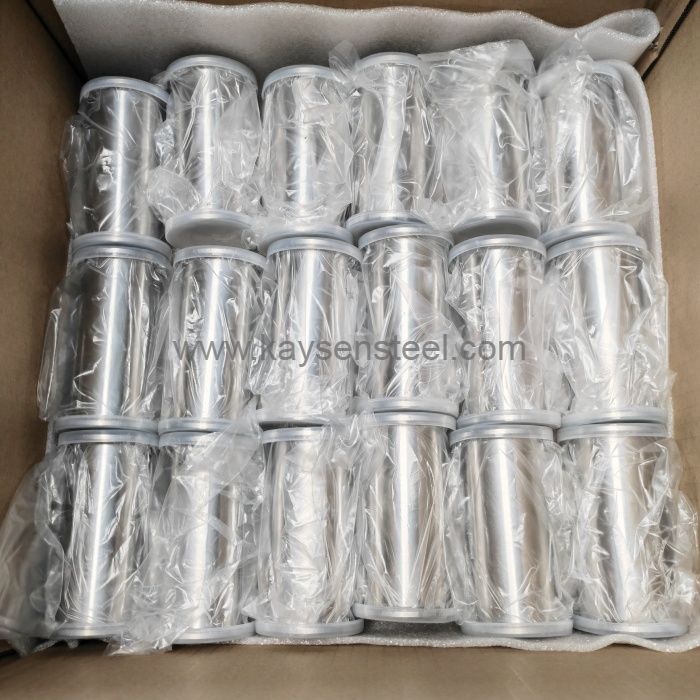

KF Full Nipples Packing Center
