CF Vacuum Bellows
KAYSEN
7307230000
●Standard specification
| Bellows Type | CF Vacuum Bellows, CF Vacuum Flexible hoses |
| Material | Bellows SUS304, SUS316L |
| Flange SUS304, SUS316L | |
| Standard | KF / CF / ISO flange type |
| Size Range | CF16,CF35,CF63,CF100 |
| Length | 250mm,500mm,750mm,1000mm,1500mm,2000mm,3000mm or as customer request |
| Wall Thickness | 0.15-0.2mm |
| Elasticity of bellows | 40% |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Leakage rate | 1×10 -9 Pa・m³/sec or less |
● Features
* Soft, flexible, easy to bend, vibration absorbing
* Helium leakage test passed before shipping
* Plastic flange protective cap is included to avoid flange scratching during transportation
* Delicate Welding to ensure integrity and reliability
●Remarks
Hoses of sizes of NW125 or more can be fabricated
Hose with braid can be fabricated
Customized length is acceptable upon request.
●Application
Semiconductor, LCD, LED, solar energy,space development, accelerator,flat panel display, solar energy,
photoelectric communication, biotechnology, 3C electronics and food industries,etc

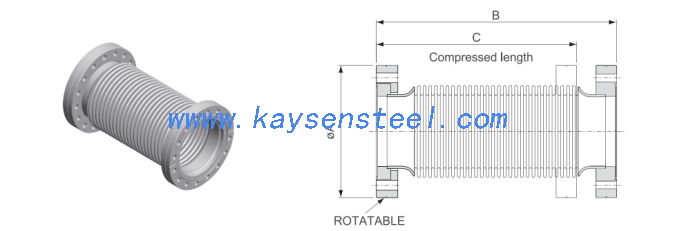

CF Compressible Bellows Connections
Unit:mm
| Item No. | Flange Size | Material | A | B | C |
| CF16FXC150R | CF16 | SS304 | 33.8 | 150 | 130 |
| CF35FXC180R | CF35 | SS304 | 69.5 | 180 | 160 |
| CF63FXC210R | CF63 | SS304 | 113.6 | 210 | 190 |
| CF100FXC270R | CF100 | SS304 | 151.6 | 270 | 250 |
**Material SS316,Customized length is acceptable upon request. CF160-CF320 is upon request.
KAYSEN STEEL INDUSTRY CO.,LTD
Contact Person:Kaysen Sales Team
Email:sales@kaysensteel.com
