Product Name: Vacuum Fitting - Blank KF (QF) Stubs (304L SS)
KF blank flange stubs specification:
• Model: KF-25
• Material: SS304 (1.4301), SS316L(1.4404), Aluminum 6061-T6, Brass, etc
▪ Sealing Material: rubber/ elastomeric o-ring mounted in a centering ring
• Blank Flange Size: KF-10, KF-16, KF-25, KF-40, and KF-50
• Weight: 0.02 Kg
• Standard: ISO-KF standards
▪ Temp.: between ~0° C and 120—180° C
▪ Pressure: from atmosphere to ~10-8 Torr or mbar.
Quality & Inspection:
▪ PMI test to verify material grade
▪ Dimension controlling during fabricating and finished
▪ Visual and surface 100% examination before shipment
▪ Packed in carton box firstly, then in wooden case
Technical Data:
Product Name: Vacuum Fitting - Blank KF (QF) Stubs (304L SS)
KF blank flange stubs specification:
• Model: KF-25
• Material: SS304 (1.4301), SS316L(1.4404), Aluminum 6061-T6, Brass, etc
▪ Sealing Material: rubber/ elastomeric o-ring mounted in a centering ring
• Blank Flange Size: KF-10, KF-16, KF-25, KF-40, and KF-50
• Weight: 0.02 Kg
• Standard: ISO-KF standards
▪ Temp.: between ~0° C and 120—180° C
▪ Pressure: from atmosphere to ~10-8 Torr or mbar.
Quality & Inspection:
▪ PMI test to verify material grade
▪ Dimension controlling during fabricating and finished
▪ Visual and surface 100% examination before shipment
▪ Packed in carton box firstly, then in wooden case

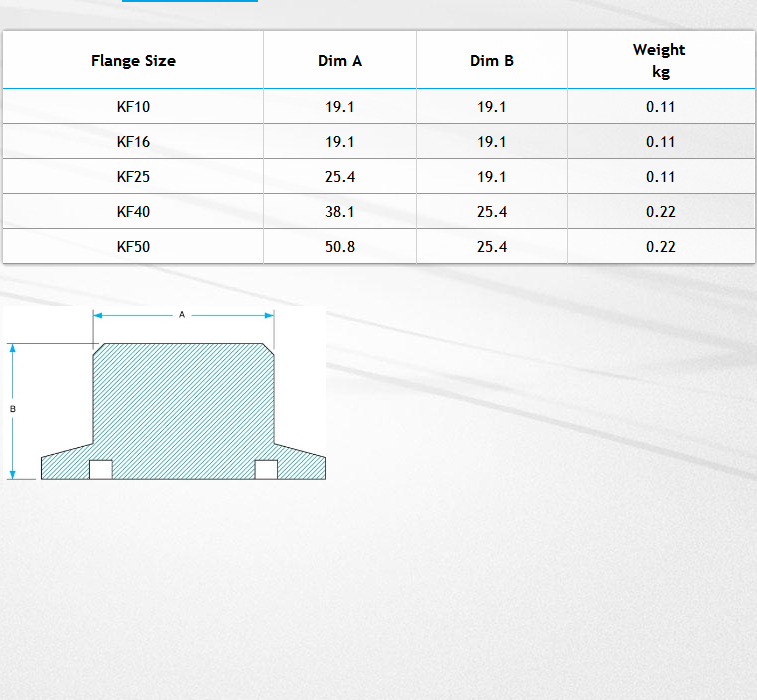

Technical Data:
