China Sus304 316 Vacuum ISO Bolted Blank Flange Vacuum Flanges ISO63-ISO630

Share to:

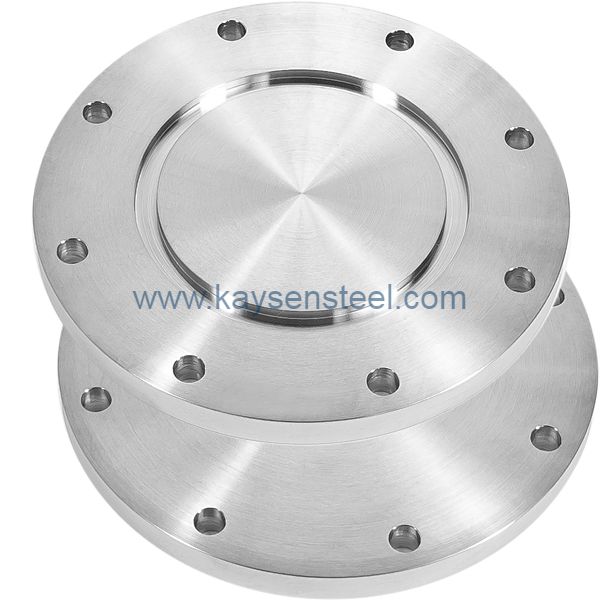

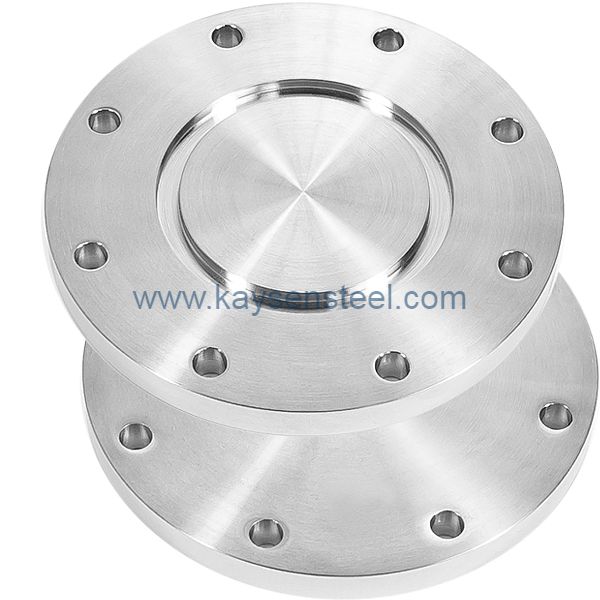

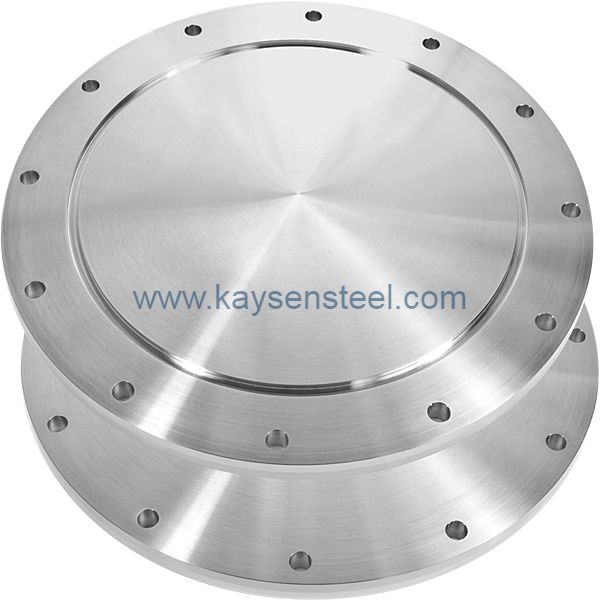

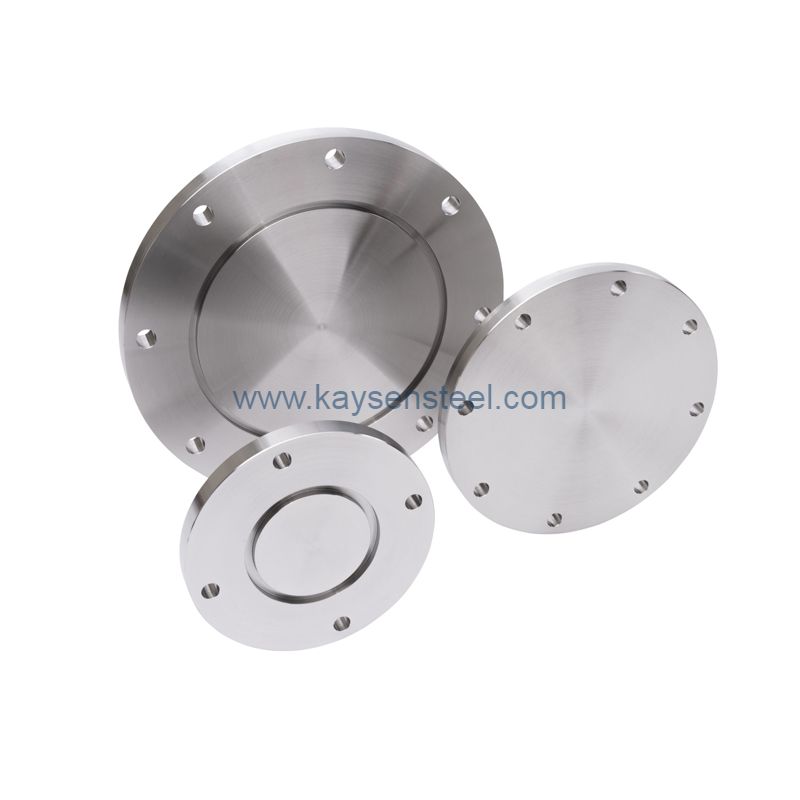

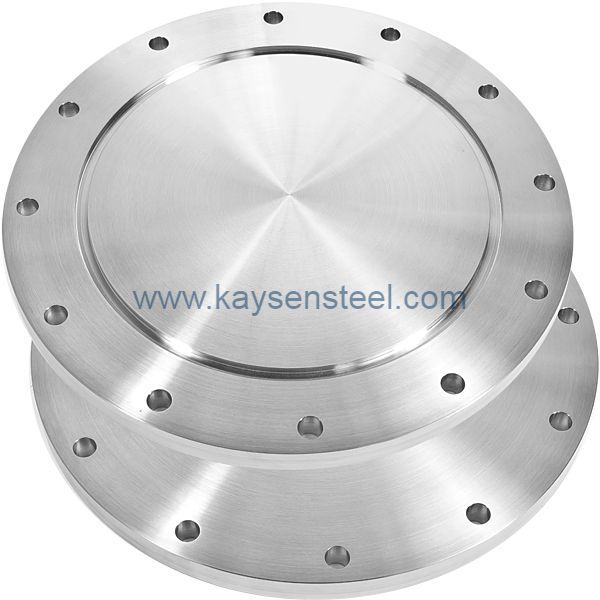

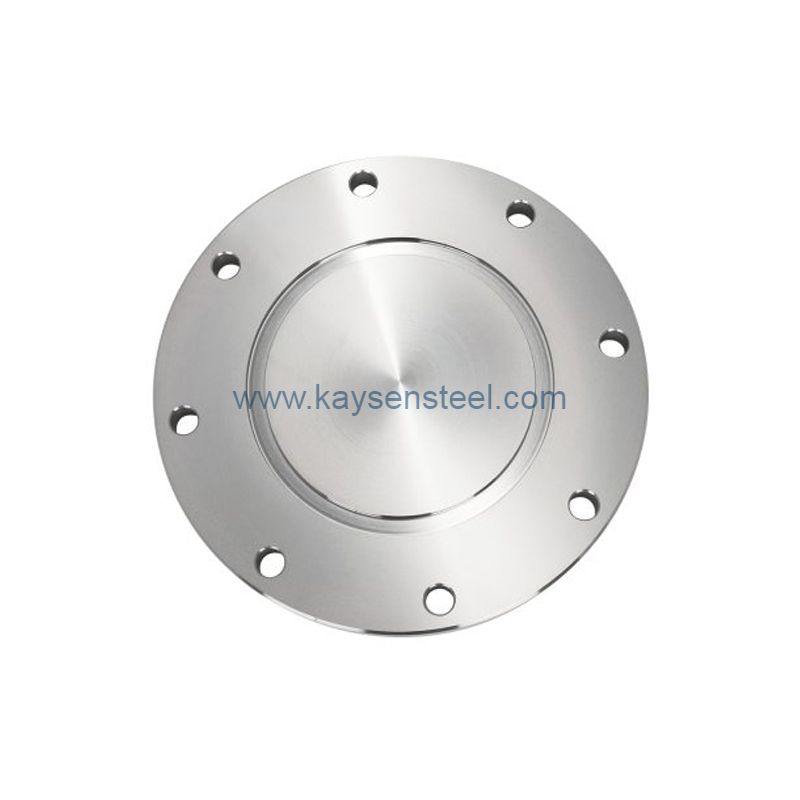

China Sus304 316 Vacuum ISO Bolted Blank Flange Vacuum Flanges ISO63-ISO630

ISO vacuum bored blank flanges are made of 304/316L stainless steel. Centering ring and seal assemblies include a stainless steel centering ring and aluminum retainer ring, with O-rings available in Viton or Buna-N. Single and double claw clamps are stainless steel. Sizes range from ISO63 to ISO630.

Availability:

Quantity:



Inquire Add to Basket

Model:
ISO vacuum bored flange
Brand:
KAYSEN

Product Description

Description of ISO vacuum flanges

● Suitable for both low and high vacuum systems, these components offer a simple solution for applications requiring easy, repeated assembly.

● They pass helium leakage tests before shipping and come with plastic flange caps to prevent scratches during transport.

● ISO-KF components are assembled by placing a centering ring (with a Viton O-ring) between two flanges and securing them with vacuum clamps.

ISO bolted blank flange ISO63-ISO630 Specification

Product Name	ISO bolted blank flange ISO63-ISO630
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum flange types	ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)

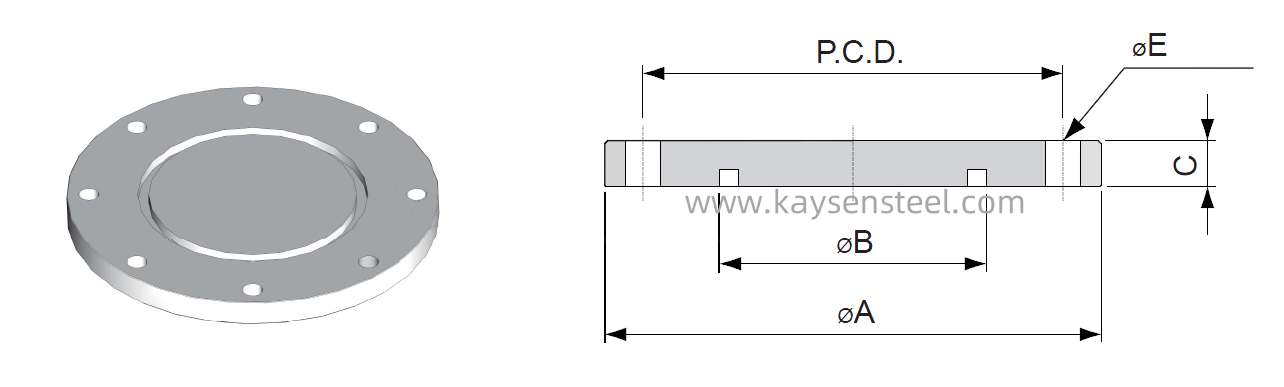

ISO bolted blank flange ISO63-ISO630 parameters

ISO bolted blank flange ISO63-ISO630

Unit:mm
Model No.	Material	A	B	C	*ENo**	P.C.D.
ISO63BB	SS304	130	70	12	9*4	110
ISO80BB	SS304	145	83	12	9*8	125
ISO100BB	SS304	165	102	12	9*8	145
ISO160BB	SS304	225	153	16	11*8	200
ISO200BB	SS304	285	213	16	11*12	260
ISO250BB	SS304	335	261	16	11*12	310
ISO320BB	SS304	425	318	20	14*12	395
ISO400BB	SS304	510	400	20	14*16	480
ISO500BB	SS304	610	501	20	14*16	580
ISO630BB	SS304	750	651	24	14*20	720
**SS316, Aluminum is upon request

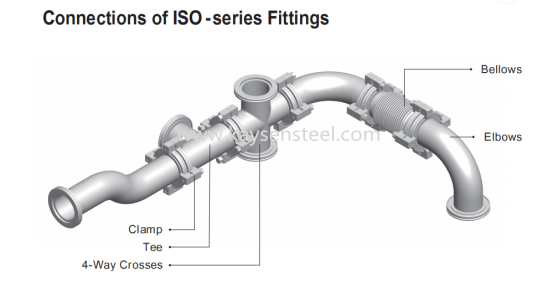

ISO fittings connection

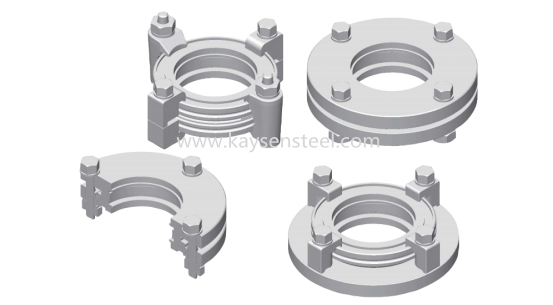

iso flanges assemble

ISO bolted blank flange ISO63-ISO630 Product Center

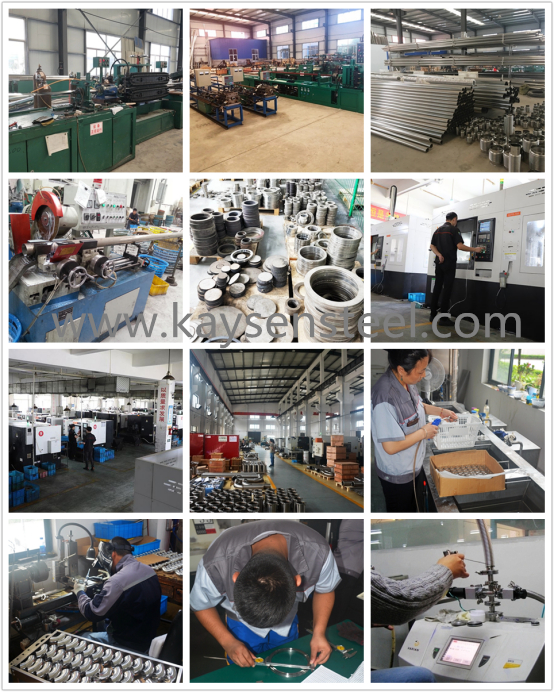

vacuum components factory

ISO bolted blank flange ISO63-ISO630 Packing Center

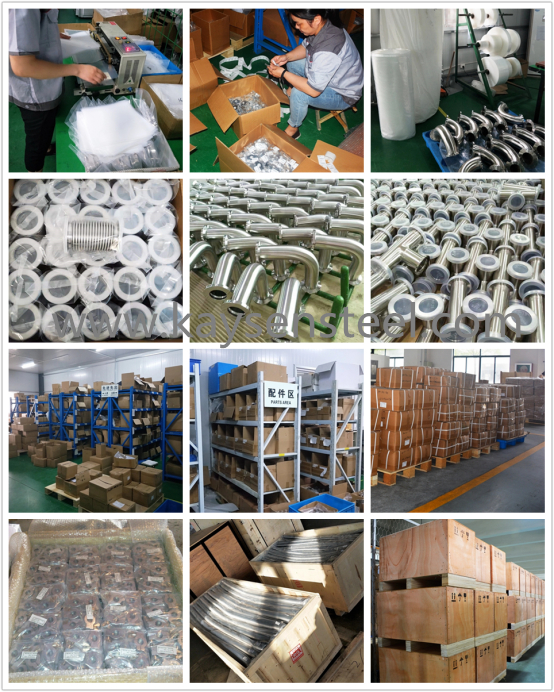

vacuum components warehouse
