China Sus304 316 ISO-BF Bolted flange(Tapped) ISO Vacuum flanges ISO63-ISO630

Share to:

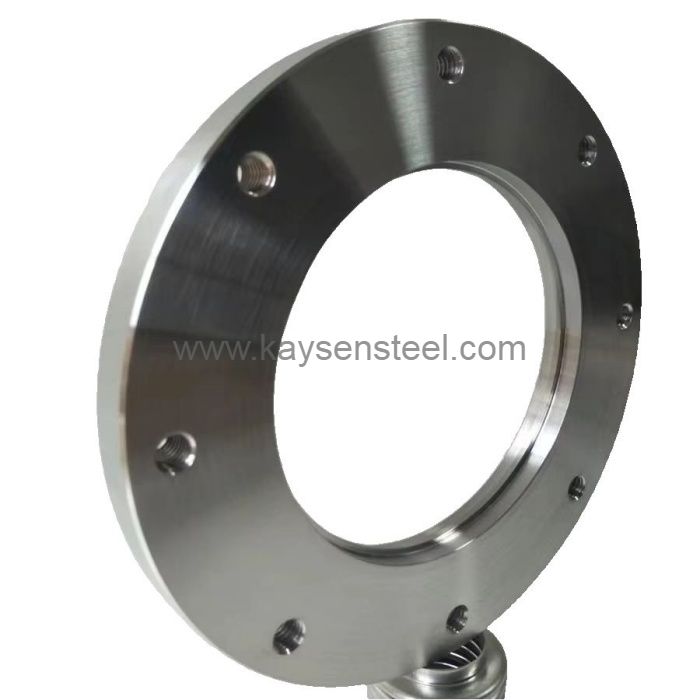

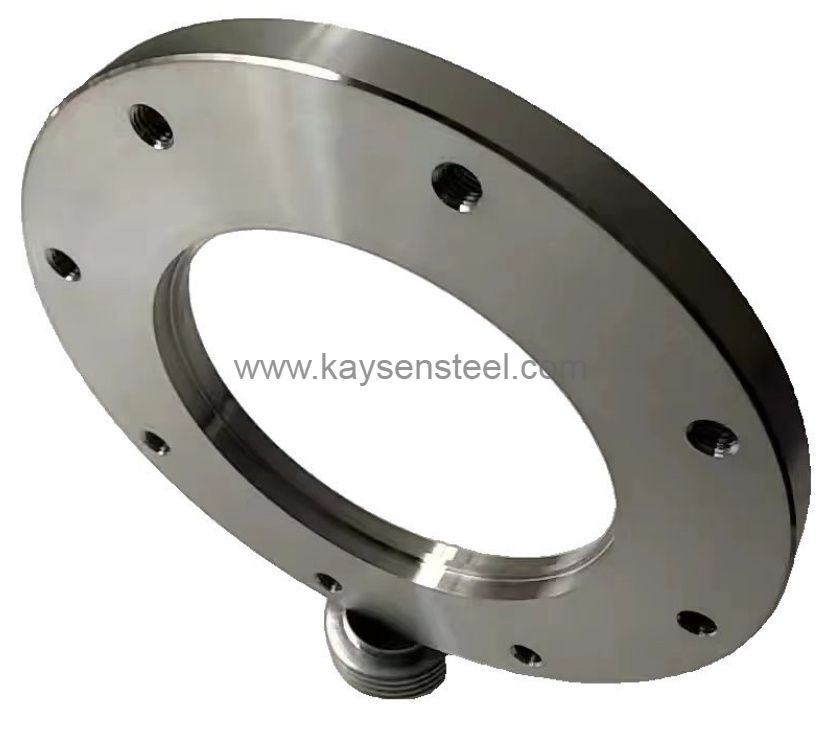

China Sus304 316 ISO-BF Bolted flange(Tapped) ISO Vacuum flanges ISO63-ISO630

ISO-BF bolted flanges feature a bore for standard inch tube and piping diameters, or a blank-off to close a port. They are infinitely rotatable and compatible with NW63 to NW630 size ISO-BF bolted vacuum flanges. Bolted flanges are joined using our ISO flange bolt and nut set.

Availability:

Quantity:



Inquire Add to Basket

Model:
ISO vacuum bored flange
Brand:
KAYSEN

Product Description

Description of ISO vacuum flanges

● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.

● Helium leakage test passed before shipping

● Plastic flange protective cap is included to avoid flange scratching during transportation

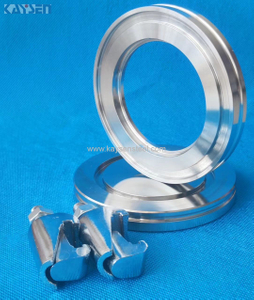

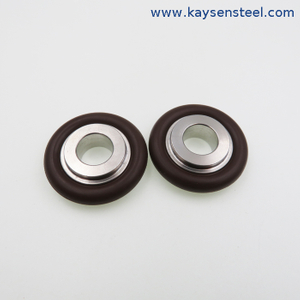

●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.

ISO-BF vacuum bolted flange tapped ISO63-ISO630 Specification

Product Name	ISO-BF vacuum bolted flange tapped ISO63-ISO630
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard flange
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.

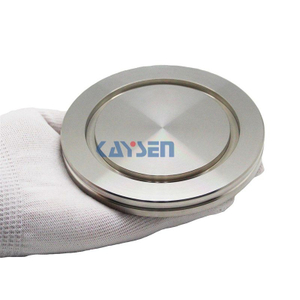

ISO Vacuum flange types	ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)

ISO-BF vacuum bolted flange tapped ISO63-ISO630 parameters

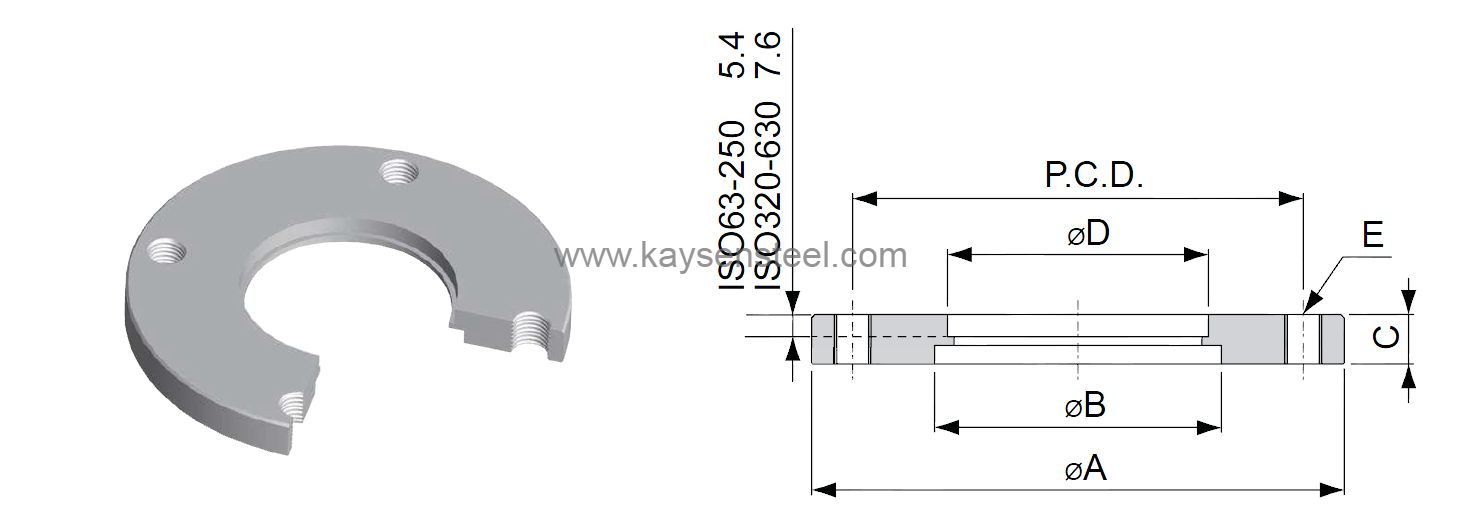

ISO-BF vacuum bolted flange tapped ISO63-ISO630 Unit:mm

Model No.	Material	A	B	C	D	*ENo**	P.C.D.
ISO63BFTAP	SS304	130	70	12	63.7	M8*4	110
ISO80BFTAP	SS304	145	83	12	76.8	M8*8	125
ISO100BFTAP	SS304	165	102	12	102.2	M8*8	145
ISO160BFTAP	SS304	225	153	16	152.9	M10*8	200
ISO200BFTAP	SS304	285	213	16	203.7	M10*12	260
ISO250BFTAP	SS304	335	261	16	254.5	M10*12	310
ISO320BFTAP	SS304	425	318	20	305.3	M12*12	395
ISO400BFTAP	SS304	510	400	20	406.9	M12*16	480
ISO500BFTAP	SS304	610	501	20	508.8	M12*16	580
ISO630BFTAP	SS304	750	651	24	610.4	M12*20	720

ISO fittings connection

iso flanges assemble

ISO-BF vacuum bolted flange tapped ISO63-ISO630 Product Center

vacuum components factory

ISO-BF vacuum bolted flange tapped ISO63-ISO630 Packing Center

vacuum components warehouse
