WELDED TITANIUM PIPE ASTM B862 GR.2 ASME B36.19 16" X 8,0MM X 6000MM WT

Views: 45     Author: Site Editor     Publish Time: 2020-11-10      Origin: Site

WELDED TITANIUM PIPE ASTM B862 GR.2 ASME B36.19 16" X 8,0MM X 6000MM WT

WELDED TITANIUM PIPE ASTM B862 GR.2 ASME B36.19  16" X 8,0MM X 6000MM WT - China Kaysen Steel Industry



Kaysen have export Titanium Grade 2 Welded Pipe ASTM B862 GR.2 ASME B36.19  16" X 8,0MM X 6000MM WT to customers, with superial quality.


Titanium pipe is available as Welded Titanium Pipe as well as Seamless Titanium Pipe for ASTM B861 and ASTM B862 with Norminal Size from 1/2"-30" . Waill Thickness from SCH10 -SCH160.

Titanium Pipe is available in standard NPS sizes certifiable to ASTM and ASME specifications. The dimensional tolerances conform to ASME B36.19M and ASME B36.10M

Titanium Pipe have Grade 1, Grade  2, Grade 5, Grade 7, Grade 9, Grade 12 with different chemicial composition.


We stock Titanium Pipe and have representatives available to speak with you regarding any of our custom Titanium pipe requirements.

Contact us right now.                    Tel:+86-15906484621           Email: sales@kaysensteel.com

 Welded Titanium Pipe and Seamless Titanium Pipe

Type

STANDARDS Nominal Size Wall Thickness

Seamless

Titanium Pipe

ASTM B861 1/2" Sch 10, Sch 40, Sch 80, Sch 160
ASME SB-861 3/4" Sch 10, Sch 40, Sch 80, Sch 160

1" Sch 10, Sch 40, Sch 80, Sch 160

1.5" Sch 10, Sch 40, Sch 80, Sch 160

2" Sch 10, Sch 40, Sch 80, Sch 160

3" Sch 10, Sch 40, Sch 80, Sch 160

4" Sch 10, Sch 40, Sch 80, Sch 160

6" Sch 10, Sch 40, Sch 80, Sch 160

Welded

Titanium Pipe

ASTM B-862 1/2" Sch 10, Sch 40,
ASME SB-862 3/4" Sch 10, Sch 40,

1" Sch 10, Sch 40,

2" Sch 10, Sch 40,

4" Sch 10, Sch 40,

6" Sch 10, Sch 40,

8" Sch 10, Sch 40,

10" Sch 10, Sch 40,

12" Sch 10, Sch 40,

14" to 30"

Sch 10, Sch 40,


Grade 1, Grade  2, Grade 5, Grade 7, Grade 9, Grade 12 Titanium Pipe

Titanium Grade Chemical Composition Properties
Grade 1 C 0.10 max MIN. TENSILE 35 KSI
Fe 0.20 max MIN. YIELD 25 KSI
H 0.015 max HARDNESS 14.9
N 0.03 max TENSILE MODULUS 103 GPA
O 0.18 max POISSON'S RATION 0.34-0.40
Ti Remaining
Grade 2 C 0.10 max MIN. TENSILE 50 KSI
Fe 0.30 max MIN. YIELD 40 KSI
H 0.015 max HARDNESS 14.9
N 0.03 max TENSILE MODULUS 103 GPA
O 0.25 max POISSON'S RATION 0.34-0.10
Ti Remaining
Grade 5 AI 5.5-6.75 max MIN. TENSILE 130 KSI
C 0.10 max MIN. YIELD 120 KSI
Fe 0.40 max HARDNESS 16.4
H 0.015 max TENSILE MODULUS 114 GPA
N 0.05 max POISSON'S RATION 0.30-0.33
O 0.20 max
V 3.5-4.5
Ti Remaining
Grade 7 Pd 0.12-0.25 max MIN. TENSILE 50 KSI
C 0.10 max MIN. YIELD 40 KSI
Fe 0.30 max HARDNESS 14.9
H 0.015 max TENSILE MODULUS 103 GPA
N 0.03 max POISSON'S RATION 0.37
O 0.25 max
Ti Remaining
Grade 9 AI 2.5-3.5 MIN. TENSILE 90 KSI
C 0.05 max MIN. YIELD 70 KSI
Fe 0.25 max HARDNESS 13.0
H 0.013 max TENSILE MODULUS 107 GPA
N 0.02 max POISSON'S RATION 0.34
O 0.12 max
V 2.0-3.0
Ti Remaining
Grade 12 C 0.08 max MIN. TENSILE 70 KSI
Fe 0.30 max MIN. YIELD 50 KSI
H 0.0135 max HARDNESS 14.9
Mo 0.2-0.4 TENSILE MODULUS 103 GPA
N 0.03 max POISSON'S RATION 0.28
O 0.25 max
Ti Remaining

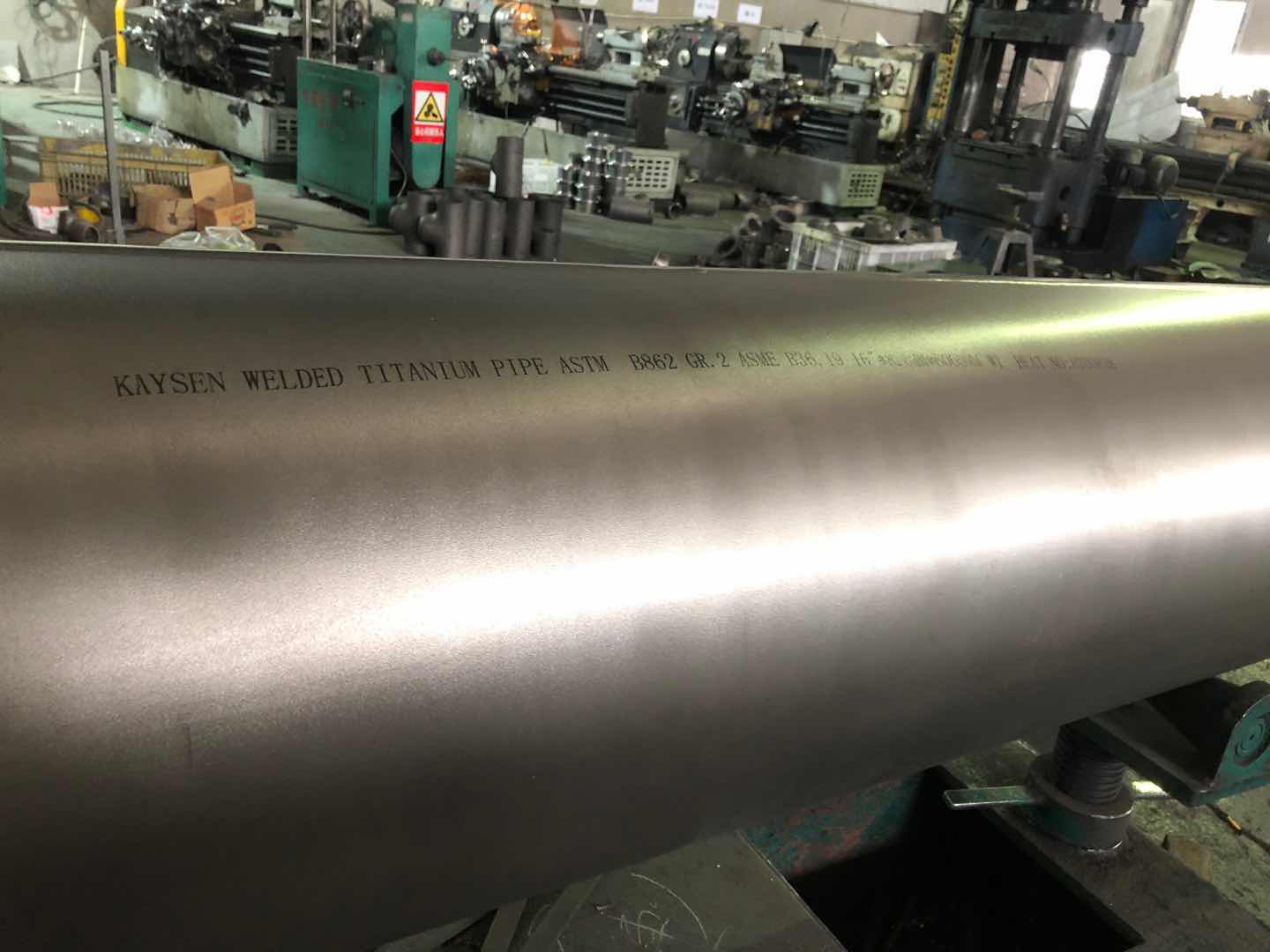

WELDED TITANIUM PIPE-2
