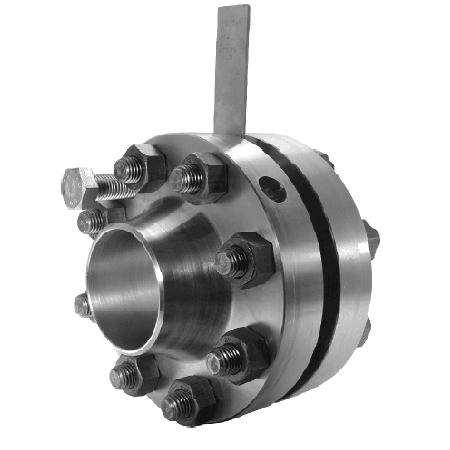

Product Name:Stainless Steel Orifice Flange With Spade
1.Main Products:
Slip On Flange, Welding Neck Flange,Socket Welding Flange,Blind Flange,
Lap Joint Flange, Plate/Flat Flange,Threaded Flange,Loose plate Flange
Orifice Flange,Spectacle Flange,Anchor Flange,SAE Flange
Special Flange,Hot/Cold/Electro Galvanized Flange
2.Face Finish:RF,FF,RTJ,TF,GF
3.Size Range:DN15-DN1200 (1/2inch-48inch)
4.Standard & Pressure Ratings:
1) ANSI/ASME/ASA B16.5/B16,47:150LBS,300LBS,600LBS,900LBS,1500LBS,2500LBS
2) DIN/UNI: PN6 PN10 PN16 PN25 PN40 PN64
3) EN1092-1/BS4504: PN6 PN10 PN16 PN25 PN40 PN63
4) GOST12820-80: PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0
5) GOST12821-80: PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3.
6) SANS 1123: 600KPA, 1000KPA.1600KPA.2500KPA.4000KPA.
7) JIS B2220/KS B1503:5KG, 10KG, 16KG, 20KG, 30KG, 40KG
8) BS 10, AS2129: TABLE D, TABLE E ,TABLE F
9) AWWA C207: CLASS D, CLASS E, CALSS F
5.Material:
A.Carbon Steel: ASTM A105,ASTM A350 LF1/ LF2, S235JR, P245GH, P250GH, P280GH,A694 F42/ 46 /52 /56 / 60 / 65 / 70, etc
B.Stainless Steel: ASTM A182 F304/304L/304H, F316/316L,F317/317L,F321,F310,F347,Etc.
C.Alloy Steel: ASTM A 182 F1/ F5/ F9/ F11/ F22/ F91/ Etc.
D.Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
6.Surface Treatment: Black painting, anti-rust varnish, anti-rust oil, hot-galvanized
7.Non-destructive Testing: Penetration test, ultrasonic test, radiographic test, any third parties inspection
8.Certificate:CE/ISO/PED/TS/BV/CQC Certificate.
9.Packing: Inner Plastic Bag,Outer Carton and Plywood Case or Pallet or according to client's requirement
10.Application: Petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat, exchanger, gas metallurgy, shipbuilding, construction, etc.
