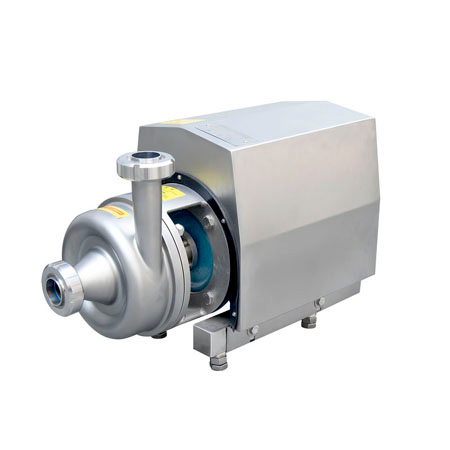

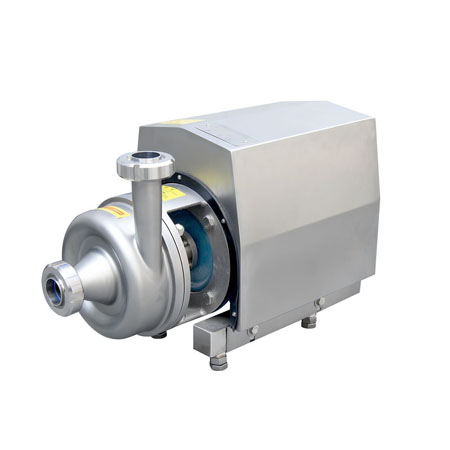

Product Name: Sanitary Stainless Steel Centrifugal Pump for Food Industry Features: Motor:0.55-22Kw(KS) Impeller:Open type(KS) R/mink speed:2900rpm(50Hz)/3600rpm(60Hz) Flow:1.5-120m3/h(KS) Lift:75m(KS) MAX Pressure:7Bar(Ks) MAX Temperature:120°C/248°F Connection: Clamp,Thread,Flange,Welding Standard: DIN,SMS,3A,ISO,IDF,RJT Design and Standard:3A Hygienic Standard Adjustable Stainless Steel Leg Mechanical Seal: DIN 2946L Single mechanical seal Flushed single mechanical seal Flushed double mechanical seal Material: Motor Housing: Cold rolled stainless steel plate Investment Casting Impeller: AISI 304/316L Contact Parts with Material: Viton,EPDM Gasket: SSC-Sic/EPDM Internal Surface: Ra≤0.8um External Surface: Mirror Polish,Sandblast Available Size: DN8- DN15 (1/4in-1/2in) Max Pressure: 0.6Mpa Medium: Liquid, Gas, Oil and High Corrosive Chemical Media Application:Dairy,Food,Beverage,Juice,Pharmaceutical,Cosmetics,etc Certificates: CE/ISO/FDA Certificates. Packing: Carton Box, Plywood Case,Pallet or as per your requirement
Product Name: Sanitary Stainless Steel Centrifugal Pump for Food Industry Features: Motor:0.55-22Kw(KS) Impeller:Open type(KS) R/mink speed:2900rpm(50Hz)/3600rpm(60Hz) Flow:1.5-120m3/h(KS) Lift:75m(KS) MAX Pressure:7Bar(Ks) MAX Temperature:120°C/248°F Connection: Clamp,Thread,Flange,Welding Standard: DIN,SMS,3A,ISO,IDF,RJT Design and Standard:3A Hygienic Standard Adjustable Stainless Steel Leg Mechanical Seal: DIN 2946L Single mechanical seal Flushed single mechanical seal Flushed double mechanical seal Material: Motor Housing: Cold rolled stainless steel plate Investment Casting Impeller: AISI 304/316L Contact Parts with Material: Viton,EPDM Gasket: SSC-Sic/EPDM Internal Surface: Ra≤0.8um External Surface: Mirror Polish,Sandblast Available Size: DN8- DN15 (1/4in-1/2in) Max Pressure: 0.6Mpa Medium: Liquid, Gas, Oil and High Corrosive Chemical Media Application:Dairy,Food,Beverage,Juice,Pharmaceutical,Cosmetics,etc Certificates: CE/ISO/FDA Certificates. Packing: Carton Box, Plywood Case,Pallet or as per your requirement
