1. Sanitary Welded Butterfly Valve: Butterfly valve is mainly applied to fluid products of food processing, pharmaceutical and chemical industry. Simple and vigorous design, low pressure consumption.Butterfly valve can automatically operate through actuator, and can also be operated with handle. 2. Product Name: Sanitary Male Butterfly Valve With Stainless Steel Handle 3. Valve Type: Direct Way Ball Valve, Tee T-type Ball Valve, Tee L-type Ball Valve 4. Size: DN15--DN250,1/2in-10in 5. Material: Butterfly Plate and Valve Body: AISI304/304L,316/316L(Forged) Gasket Material: EPDM (Standard),NBR,FPM,VMQ,Conforms to FDA 177.2600 Handle: Gear Handle/ pull-rod Handle, Multiple-positioning Handle,ANSI 304/PP Ball Seat: PTFE 6. Maximum Operating Pressure: 10Bar(ON25/100)8B 7. Operating Temperature: -10'C- +120'C(EPDM) 8. Internal Surface: Ra<=0.8um 9. External Surface: CNC Lathe Process 10. Connection Mode: Welding, Clamp, Thread, Single-Welding, Single Thread ,Flange-Type 11. Connection Standard: DIN, SMS, 3A, ISO, IDF, RJT 12. Control Mode: Position Sensor, C-TOP Controller, C-TOP Controller (AS-I) 13. Actuators: Stainless Steel Pneumatic Actuator, Intelligent Pneumatic Actuator,Aluminum Actuator, Electric Actuator , 14. Intelligent Control: Position Sensor; C-TOP controller, C-TOP controller (AS-I) 15. Medium: Liquid, Gas, Oil and High Corrosive Chemical Media 16. Application: Dairy, Food, Beverage, Juice, Pharmaceutical, Cosmetics and Other Industries. 17. Certificates: CE/ISO/PED/TS/BV/CQC Certificates.

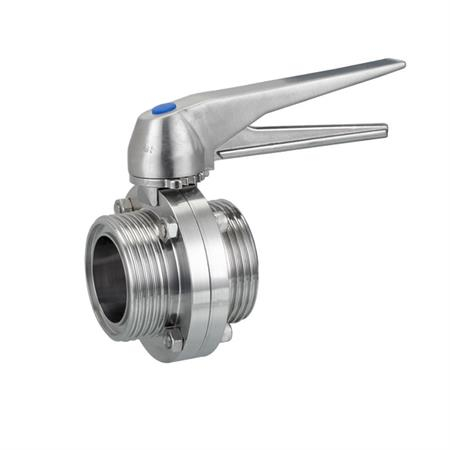

1. Sanitary Welded Butterfly Valve: Butterfly valve is mainly applied to fluid products of food processing, pharmaceutical and chemical industry. Simple and vigorous design, low pressure consumption.Butterfly valve can automatically operate through actuator, and can also be operated with handle. 2. Product Name: Sanitary Male Butterfly Valve With Stainless Steel Handle 3. Valve Type: Direct Way Ball Valve, Tee T-type Ball Valve, Tee L-type Ball Valve 4. Size: DN15--DN250,1/2in-10in 5. Material: Butterfly Plate and Valve Body: AISI304/304L,316/316L(Forged) Gasket Material: EPDM (Standard),NBR,FPM,VMQ,Conforms to FDA 177.2600 Handle: Gear Handle/ pull-rod Handle, Multiple-positioning Handle,ANSI 304/PP Ball Seat: PTFE 6. Maximum Operating Pressure: 10Bar(ON25/100)8B 7. Operating Temperature: -10'C- +120'C(EPDM) 8. Internal Surface: Ra<=0.8um 9. External Surface: CNC Lathe Process 10. Connection Mode: Welding, Clamp, Thread, Single-Welding, Single Thread ,Flange-Type 11. Connection Standard: DIN, SMS, 3A, ISO, IDF, RJT 12. Control Mode: Position Sensor, C-TOP Controller, C-TOP Controller (AS-I) 13. Actuators: Stainless Steel Pneumatic Actuator, Intelligent Pneumatic Actuator,Aluminum Actuator, Electric Actuator , 14. Intelligent Control: Position Sensor; C-TOP controller, C-TOP controller (AS-I) 15. Medium: Liquid, Gas, Oil and High Corrosive Chemical Media 16. Application: Dairy, Food, Beverage, Juice, Pharmaceutical, Cosmetics and Other Industries. 17. Certificates: CE/ISO/PED/TS/BV/CQC Certificates.
