ORIFICE FLANGE DATA SHEET-KAYSEN STEEL

Views: 63     Author: LILY GUO     Publish Time: 2016-04-28      Origin: www.kaysensteel.com

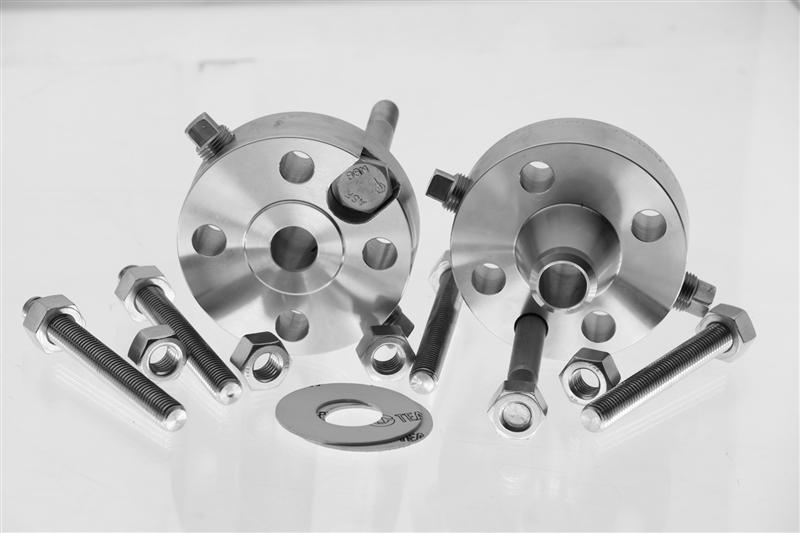

ORIFICE FLANGE DATA SHEET-KAYSEN STEEL

ORIFICE FLANGE DATA SHEET-KAYSEN STEEL


                    As you know, Orifice flange is a little special for most of facotrys,only serval mills can produce them will all of accessories.KAYSEN STEEL INDUSTRY have many years experience for producing special flanges.Such as ORIFICE FLANGE,SAE FLANGE, TUBE PLATE FLANGE and other customized flange.

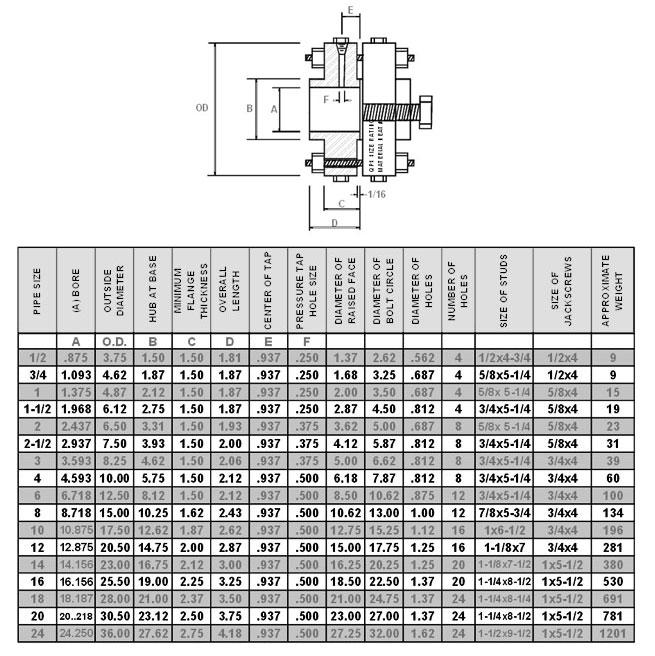

And the following drawing with data sheet is about the ORIFICE FLANGE, if you have any questions or need help or any inquiry,you can contact me at kaysensteel@hotmail.com,waitting for your connection.
orifice-flanges-300-union
