Product Detail

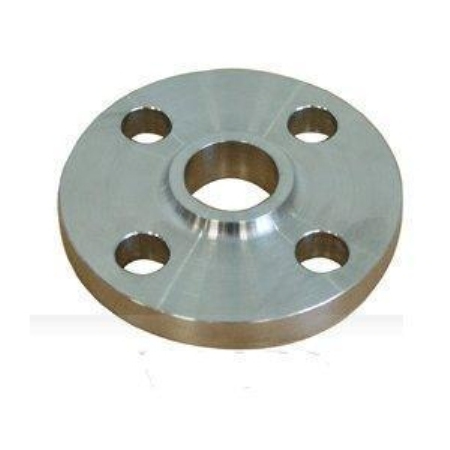

EN1092-1:2002 Type 12 Slip On Forged Flange PN16 S235JR/C22.8 Slip-On Flange

Share to:

EN1092-1:2002 Type 12 Slip On Forged Flange PN16 S235JR/C22.8 Slip-On Flange

Brand:KAYSEN
Standard:EN1092-1:2002
Size:DN15-DN2000
Type:Welding Neck Type11,Plate Type01,Slip On Type12,Threaded Type13,Blind Type05,Lapped Ioint Type02
Material:CS RST37.2;S235JR;C22.8;SS304/304L,316/316L
Coating:Rust-proof oil;yellow paint;galvanized

Quantity:



Inquire Add to Basket

Product Description

EN1092-1:2002 Type 12 Slip On Forged Flange PN16 S235JR/C22.8 Slip-On Flange

Product Despriction

Product Name	EN1092-1 2002 Type 12 Slip On Flange
Items	Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange
Face Finish	FF,RF,RTJ,TF,GF
Standard	ANSI	ANSI B16.5 ASME B16.47 series A/B
	DIN	DIN 2631 2573 2527 2565 2641
	GOST	GOST 12820-80,GOST 12821-80,Gost Blind

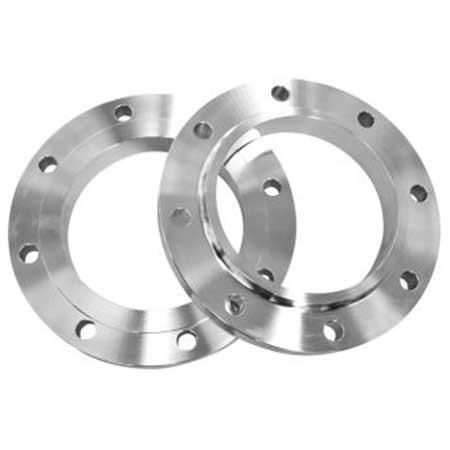

	EN	EN1092-1:2002

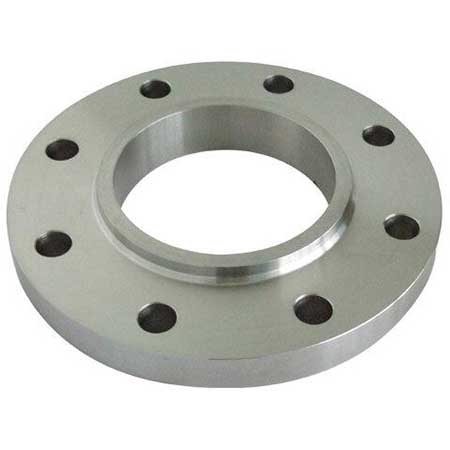

	JIS	JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210

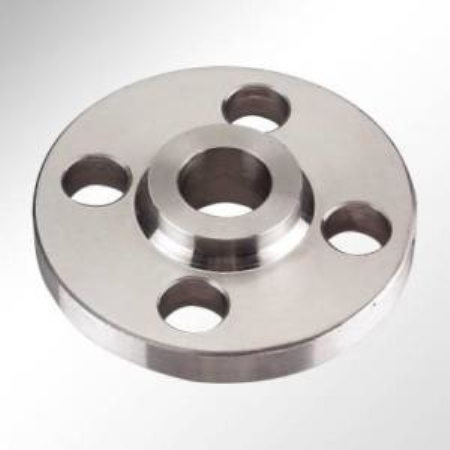

	BS	BS4504,BS10 Table D/E
	UNI	UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67
	SABS	SABS 1123
Material	ANSI	CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80
	DIN	CS RST37.2;S235JR SS 304/304L,316/316L
	GOST	CS CT20;16MN;SS 304/304L,316/316L
	EN	CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
	JIS	SS400,SF440,SS 304/304L, 316/316L
	BS	CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
	UNI	CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
	SABS	CSRST37.2;S235JR;Q235;SS 304/304L,316/316L
Pressure	ANSI	Class 150, 300, 600, 900, 1500 2500lbs
	DIN	PN6,PN10,PN16,PN25,PN40,PN64,PN100
	GOST	PN6,PN10,PN16,PN25
	EN	PN6,PN10,PN16,PN25,PN40,PN64,PN100
	JIS	1K,2K,5K,10K,16K,20K,30K,40K
	BS	PN6,PN10,PN16,PN25,PN40,PN64,PN100
	UNI	PN6,PN10,PN16,PN25,PN40
	SABS	600KPA,1000,1600,2500,4000
Size	ANSI	1/2” – 60”
	DIN	DN15-DN2000
	GOST	DN10-DN1600
	EN	DN15-DN2000
	JIS	15A-1500A
	BS	DN15-DN2000
	UNI	DN10-DN2000
	SABS	DN10-DN600
Coating	varnish, yellow paint, anti-rust oil, galvanizing etc
Usage	Used for the connection of all kinds of pipeline.
Usage	to convey the water, steam, air, gas and oil
Package	Wooden cases/pallets
Delivery	Within 30 days
Certificate	TUV, ISO9001:2008
