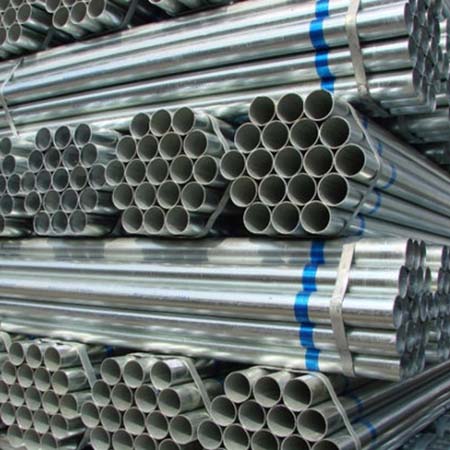

Product Name:BS1387 ASTM A53 Galvanized Steel Pipe
▲
Standard: GB/T 3091-2008;ASTM A53;BS1387;BS EN39;BS1387;BS4568;BS EN31
▲
Material: GB Standard: Q215 Q235 According to GB/T700;Q345 According to GB/T1591
ASTM Standard: Grade B,Grade C,Grade D,Grade 50
EN Standard: S185,S235JR,S235JO,E335,S355JR,S355J2
DIN Standard: SS330,SS400,SPFC590
▲
Size:1/2inch-16inch
▲
Wall Thickness:0.8mm-25mm(SCH20,SCH40,STD,XS,SCH80,SCH160,XXS)
▲
Production Technology:Hot Rolled , Cold Rolled, ERW or according to your requirement
▲
Znic Weight: 40g,60g,80g,100g,120g,270g,400g,500g,550g
7μm ,8μm, 15μm ,20μm ,40μm ,60μm,70μm,80μm
▲
Surface Treatment:Bared, Black Painted (varnish coating),Galvanized, Oiled, Color Paint, 3PE;
Or Other Anti-corrosive Treatment
▲
Type of Ends:Plain, Beveled, Thread With Couplings Or Sockets,Chamfer,Groove,
Plastic Caps And Steel Rings Can Be Provided If Possible
▲
Packing: Hexagon Shape Bundle, Covered With Tarpaulin, Containers Or In Bulk
▲
Inspection:With Chemical Composition and Mechanical Properties Analysis;Dimensional and Visual Inspection,
Also With Nondestructive Inspection
★General Description of Different Carbon Steel Pipes | Product Name | Galvanized Steel Pipe |
| Standard | BS 1139 Metal scaffolding |
| BS4568 GALVANIZED STEEL CONDUITS & ACCESSORIES |
| DIN 2393 WELDED PRECISION STEELL TUBES |
| IS 1239 STEEL TUBES, TUBULARS AND OTHER WROUGHT STEEL FITTINGS |
| IS 3589 Steel Pipes for Water and Sewage |
| IS 1161Grade Steel Tubes For Structural Purposes |
| IS 3601 Mechanical and general engineering purposes |
| IS 4270 Steel Tubes for Water Wells |
| ASTM A 53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless |
| JIS 3444 Carbon steel tubes for general structural purposes |
| |
| Steel Grade | IS 3589, IS 1239, IS:1161 Fe 330, Fe 410) |
| BS 1387, BS4568, S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, |
| S355J2H, St12, St13, St14, St33, St37, St44, ST52 |
| JIS G3444 STK290,STK400,STK500,STK490,STK540 |
| |
| Usage | 1)low pressure liquid, water, gas, oil, line pipe |
| 2)construction |
| 3)fence, door pipe |
| Marking | Tubes are distinguished by colour at two ends. .Light tube-Brown, |
| Medium tube-Blue, Heavy tube-Red |
| Welded Line Type | Longitudinal |
| Section Shape | Round |
| Inspection | With Hydraulic Testing, Eddy Current , Infrared Test |
| Test Certificate | Manufacturer Test Certificate. |
| IBR Test Certificate |
| Laboratory Test Certificate from Govt. Approved Lab. |
| Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit. |
| |
