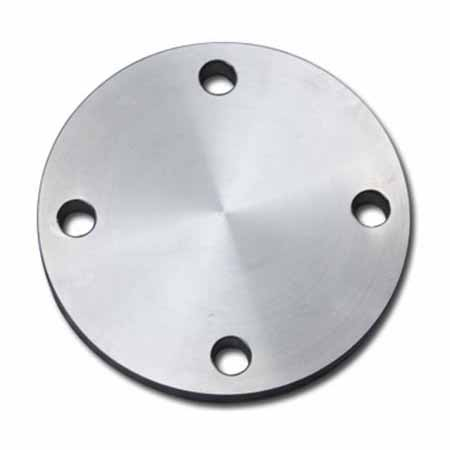

Stainless Steel Forged Blind Flange, ASTM A182 F304/304L,ASME/ANSI B16.5 150LB DN100

Share to:

Stainless Steel Forged Blind Flange, ASTM A182 F304/304L,ASME/ANSI B16.5 150LB DN100

Brand:KAYSEN
Size:DN15-DN2000 (1/2inch-80inch)
Pressure:150LBS,300LBS,600LBS,900LBS,1500LBS,2500LBS
Standard:ANSI/ASME B16.5/B16.47,DIN/UNI,EN1092-1/BS4504,GOST12820-80,GOST12821-80,JIS B2220/KS B1503,BS 10, AS2129,AWWA C207.
Material:Stainless Steel,Duplex and Super Duplex Steel,Alloy Steel,Carbon Steel
Certificates:CE/ISO/PED/TS/BV/CQC

Quantity:



Inquire Add to Basket

Name:
Stainless Steel Blind Flange
Size:
1/2inch-80inch
Material:
SS;CS;Duplex Steel;Alloy Steel
Standard:
ANSI,API,DIN/UNI,EN,GOST,BS,JIS
Type:
SO,SW,WN,TH,BL,LJF
Face:
RF,FF,RTJ,TF,GF
Surface Treatment:
GALV,Black Painting,Anti-rust Oil
Packing:
Wooden Pallet/case,Carton box
Payment Terms:
TT,LC,Paypal,West Union
Trade Terms:
FOB,CIF,CFR,EXW

Product Description

1.Product Name:Stainless Steel Forged Blind Flange, ASTM A182 F304/304L,ASME/ANSI B16.5 150LB DN100

2.Face Finish: RF,FF,RTJ,TF,GF

3.Size Range: DN15-DN2000 (1/2inch-80inch)

4.Standard & Pressure Ratings:

1) ANSI/ASME/ASA B16.5/B16,47:150LBS,300LBS,600LBS,900LBS,1500LBS,2500LBS

2) DIN/UNI: PN6 PN10 PN16 PN25 PN40 PN64

3) EN1092-1/BS4504: PN6 PN10 PN16 PN25 PN40 PN63

4) GOST12820-80: PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0

5) GOST12821-80: PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3.

6) SANS 1123: 600KPA, 1000KPA.1600KPA.2500KPA.4000KPA.

7) JIS B2220/KS B1503:5KG, 10KG, 16KG, 20KG, 30KG, 40KG

8) BS 10, AS2129: TABLE D, TABLE E ,TABLE F

9) AWWA C207: CLASS D, CLASS E, CALSS F

5.Material:

A.Carbon Steel: ASTM A105,ASTM A350 LF1/ LF2, S235JR, P245GH, P250GH, P280GH,A694 F42/ 46 /52 /56 / 60 / 65 / 70, etc

B.Stainless Steel: ASTM A182 F304/304L/304H, F316/316L,F317/317L,F321,F310,F347,Etc.

C.Alloy Steel: ASTM A 182 F1/ F5/ F9/ F11/ F22/ F91/ Etc.

D.Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760

6.Surface Treatment: Black painting, yellow painting, anti-rust oil, hot-galvanized

7.Packing:Plywood Case or Pallet
