KAYSEN-SPECTACLE BLIND FORGED FLANGE INTRODUCTION

KAYSEN Steel Industry specialized in producting the Stainless Steel Forged Flange,including EN1092-1 SLIP ON FLANGE,BS4504 WELD NECK FLANGE,,JIS B2220 THREADED FLANGE,GOST 12080-80 PLATE FLANGE,DIN2527 BLIND FLANGE,ASTM B16.36 ORIFACE FLANGE,Ect.

• SPECTACLE BLINDS

Spectacle Blinds are generally applied to permanently separating pipe systems, or just to connect with each other.

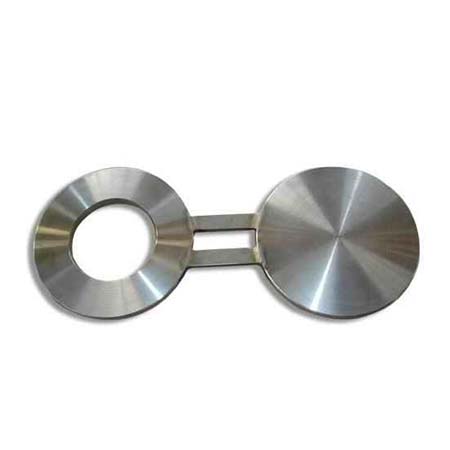

A Spectacle Blind is a steel plate cut into two discs of a certain thickness.The two discs are attached to each other by section of steel similar to the nose piece of a pair of glasses. One of the discs is a solid plate, and the other is a ring, whose inside diameter is equal to that of a flange.

Spectacle Blinds be applied in systems, which regularly need to be separated from other installations.

Normally, a Spectacle Blind is mounted in the "open" position so that flow through the pipe is possible. If the Spectacle Blind in the "close" position is rotated, the pipe is blanked off and no flow is possible.

Maintenance on a pipe system can be a reason to rotate the spectacle blind in the "close" position. This run will take place through the hole, that is drilled in the connection piece. By loosening of all bolts, and partial removal of their, the Spectacle Blind can be rotated. After replacing the gaskets (new gaskets are to recommend), the bolts can be re-assembled and tightened.
