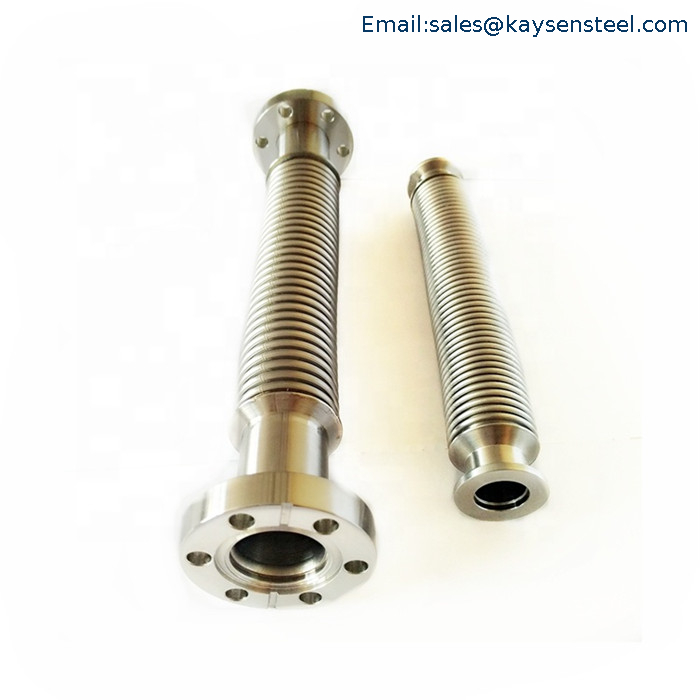

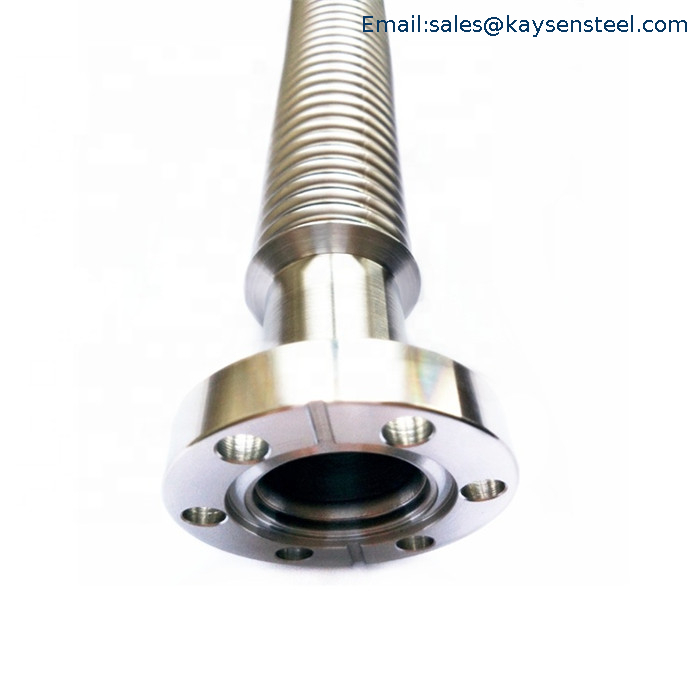

CF Vacuum Bellows
KAYSEN
7307230000
●Standard specification
| Bellows Type | CF Vacuum Bellows, CF Vacuum Flexible hoses |
| Material | Bellows SUS304, SUS316L |
| Flange SUS304, SUS316L | |
| Standard | KF / CF / ISO flange type |
| Size Range | CF16,CF35,CF63,CF100 |
| Length | 250mm,500mm,750mm,1000mm,1500mm,2000mm,3000mm or as customer request |
| Wall Thickness | 0.15-0.2mm |
| Elasticity of bellows | 40% |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Leakage rate | 1×10 -9 Pa・m³/sec or less |
● Features
* Soft, flexible, easy to bend, vibration absorbing
* Helium leakage test passed before shipping
* Plastic flange protective cap is included to avoid flange scratching during transportation
* Delicate Welding to ensure integrity and reliability
●Remarks
Hoses of sizes of NW125 or more can be fabricated
Hose with braid can be fabricated
Customized length is acceptable upon request.
●Application
Semiconductor, LCD, LED, solar energy,space development, accelerator,flat panel display, solar energy,
photoelectric communication, biotechnology, 3C electronics and food industries,etc

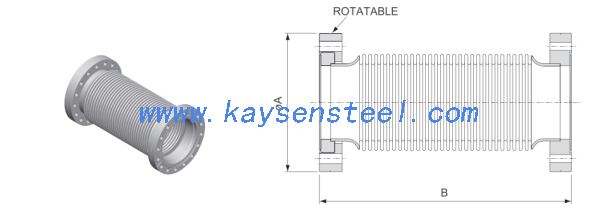

CF Flexible Hoses
Unit:mm
| Item No. | Flange Size | Material | A | B |
| CF16FX250R | CF16 | SS304 | 33.8 | 250 |
| CF16FX500R | CF16 | SS304 | 33.8 | 500 |
| CF16FX750R | CF16 | SS304 | 33.8 | 750 |
| CF16FX1000R | CF16 | SS304 | 33.8 | 1000 |
| CF35FX250R | CF35 | SS304 | 69.5 | 250 |
| CF35FX500R | CF35 | SS304 | 69.5 | 500 |
| CF35FX750R | CF35 | SS304 | 69.5 | 750 |
| CF35FX1000R | CF35 | SS304 | 69.5 | 1000 |
| CF63FX250R | CF63 | SS304 | 113.6 | 250 |
| CF63FX500R | CF63 | SS304 | 113.6 | 500 |
| CF63FX750R | CF63 | SS304 | 113.6 | 750 |
| CF63FX1000R | CF63 | SS304 | 113.6 | 1000 |
| CF100FX250R | CF100 | SS304 | 151.6 | 250 |
| CF100FX500R | CF100 | SS304 | 151.6 | 500 |
| CF100FX750R | CF100 | SS304 | 151.6 | 750 |
| CF100FX1000R | CF100 | SS304 | 151.6 | 1000 |
**Material SS316,Customized length is acceptable upon request. CF160-CF320 is upon request.
KAYSEN STEEL INDUSTRY CO.,LTD
Contact Person:Kaysen Sales Team
Email:sales@kaysensteel.com
CF Flexible Bellow,CF Flexible hose, CF Bellow,CF Vacuum Bellow
