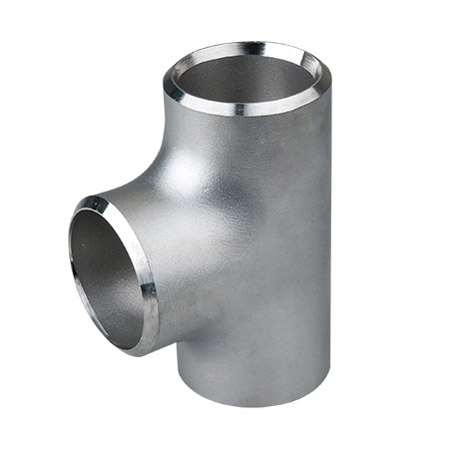

Product Name:ANSI B16.9 Stainless Steel Straight Tee

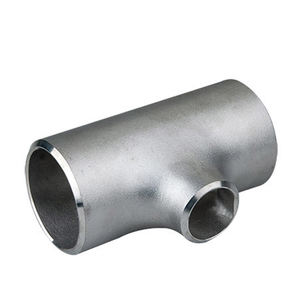

1.Main Products: 45Degree LR Elbow,45Degree SR Elbow,90Degree LR Elbow; 90Degree SR Elbow;180Degree LR Returns,180Degree SR Returns,3D Elbow,U bends,Equal Tee, Reducing Tee,Lateral Tee,Barred Tee,Cross,BW Concentric,Reducer;Eccentric Reducer,Cap;Lap Joint Stub End
2.Size Range:
Seamless Type: DN15-N600 (1/2inch-24inch)
Welded Type: DN200-DN2000 (8inch- 80inch)
3.Wall Thickness: Sch5S-Sch160,XS,XXS
4.Material:
A.Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
B.Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6,20#,A106B, A182 SA105
C.Duplex Stainless Steel: ASTM A815 UNS S31803/F51/S2205、S32750/F53/2507、S32760/F55/2607
D.Alloy Steel: ASTM A234 WP1/WP5/WP7/WP9/WP11/WP12/WP22/WP91,Low Temperature: ASTM A420 WPL1, WPL3, WPL6
E:Special Alloy Steel:TP310S,904L,Incoloy 800,Incoloy 800H,Incoloy 825,Incoloy 600,Incoloy 625
5.Standard:
ASME/ANSI B16.9/ B16.11/B16.28,MSS SP-43,JIS B2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606,DIN2615,DIN2616,GB/T-12459,GB/T13401,HGJ514,SHJ3408/3409, HG/T21635, HG/T21631,BS,EN
6.Surface Treatment: Sand Rolling,Sand Blasting,Polishing,Pickling,Rust-proof black oil
7.Technics: Cold Forming
8.End Bevel: According to the standard or the customer's requirements
9.Non-destructive Testing:Penetration test, Ultrasonic test, Radiographic test or Any third parties inspection
10.Certificate: CE/ISO/PED/TS/BV/CQC Certificate.
11.Application:Petroleum,Chemical,Electric,Power,Gas,Metallurgy,Shipbuilding, Construction,Fertilizer Equipment and Pipeline,Structure,Pharmaceutical Industry etc
